If the laser tracker keeps losing lock, won't re-acquire the reflector, or your error values wander around on a hot day, the air itself may be the problem. On hot slabs, in direct sun, or near heaters, rising heat bends the laser beam and makes the reflector look like it's shimmering — the same "heat waves," "heat haze," or mirage effect you see rippling off hot pavement. This article explains why that happens and what you can do about it.

Symptoms

• The tracker loses lock on the reflector during printing, or can't re-lock after losing line of sight.
• Distance Errors or Station Errors come back high and inconsistent — different each time you record, rather than off by the same amount.
• The problem shows up on hot days, in direct sun, over long tracker-to-robot distances, or over a hot concrete slab — and eases off when it's cooler or the distance is shorter.
• Swapping reflectors or trackers doesn't fix it.

Cause

The laser tracker locks onto the reflector by aiming its beam at the reflector's bright return and steering to keep it centered. That only works if the light travels in a straight, predictable line between the tracker and the reflector.

Heat breaks that assumption. When air is heated unevenly — hot near the slab, cooler higher up — the warm and cool pockets have slightly different densities, so they bend light by different amounts. This bending of light passing through air of changing density is refraction (the same reason a straw looks broken in a glass of water). Because the hot air is constantly moving and churning, the amount of bending changes moment to moment.

The result: the reflector's apparent position wavers and shimmers — it looks like it's wobbling around even though it's sitting perfectly still. The tracker's aiming system can no longer pin down exactly where the reflector is, so it becomes uncertain, drifts, and in strong heat haze can lose or fail to hold lock. The effect gets worse the farther the tracker is from the reflector and the hotter and more uneven the air is along the beam path.

Note — don't confuse heat haze with a bumped tracker. Heat haze produces errors that are wavy and random (different each reading). A tracker that was bumped, or a structure that shifted from thermal expansion, produces errors that are offset by a consistent amount. If your numbers are all wrong by the same amount, suspect a bump or movement, not the air.

The Physics: Snell's Law

The bending described above follows Snell's law, the rule that governs how light changes direction when it crosses between two materials — or two regions of air — that carry light at different speeds.

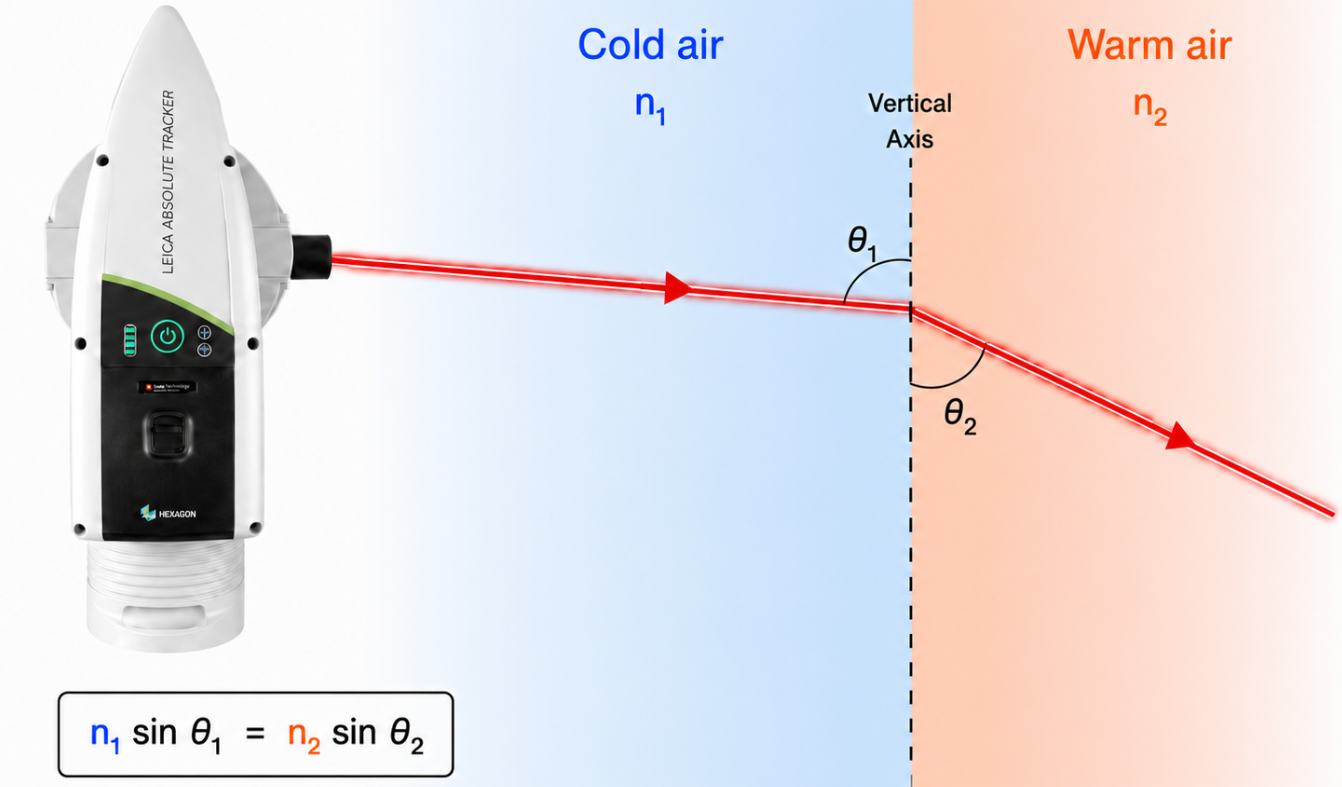

Every transparent material has a refractive index: a measure of how much it slows light down. Warm air is thinner (less dense), so it has a lower refractive index; cool air is denser, so it has a higher one. When a beam of light crosses at an angle from one to the other, it bends — always toward the cooler, denser air. Snell's law states this precisely:

n₁ × sin(θ₁) = n₂ × sin(θ₂)

where n is the refractive index of each region and θ is the angle the beam makes as it crosses the boundary. This is the same law that makes a straw look bent where it enters a glass of water: the light bends as it passes from water (higher index) to air (lower index).

Over a hot jobsite, there isn't one clean boundary — there are many shifting layers and pockets of warm and cool air along the beam path. The tracker's laser is refracted a little at each one, and because those pockets are constantly churning, the total bend keeps changing. That's why the reflector appears to shimmer and drift rather than sit still. Two things make it worse, both consistent with Snell's law: a bigger temperature difference between the pockets (a larger gap between n₁ and n₂) bends the light more, and a longer beam path gives the light more boundaries to be bent at before it reaches the tracker.

What to Do

There's no way to remove heat haze entirely outdoors, but you can reduce how much it affects tracking:

1. Shorten the tracker-to-robot distance. Heat haze compounds over distance. Moving the tracker closer to the print area gives the beam less hot air to travel through and a steadier lock.
2. Print during the cooler part of the day. Early morning, before the slab and air heat up, is the most stable. Recording control points early is common practice on hot sites.
3. Keep the beam path off the hottest surfaces. Heat rises straight off a sun-baked slab. Where you can, avoid having the line of sight skim along a hot surface for a long run.
4. Re-verify after every re-lock. If the tracker dropped and re-acquired lock during a print, use the verification reflector to confirm stationing is still good before trusting the layout.

Still Having Issues?

If errors stay high and inconsistent after you've shortened the distance and moved to cooler conditions — or if the errors are offset by a consistent amount rather than wavering — the cause is likely something other than heat haze (a bumped tracker, reflector seating, or bad control). Capture what you can (photos or video of the behavior, ambient temperature, distance from the tracker, tracker height, and the CP error values) and contact Dusty Support at 510-210-3658 or support@dustyrobotics.com.
