Overview
Proper installation of Ink Cartridges is required for consistent print quality and to prevent damage to the print head assembly. Incorrect installation can damage the Latch, Cartridge, or internal components.
Follow this procedure exactly when installing Cartridges in the FieldPrinter 2.
Requirements:

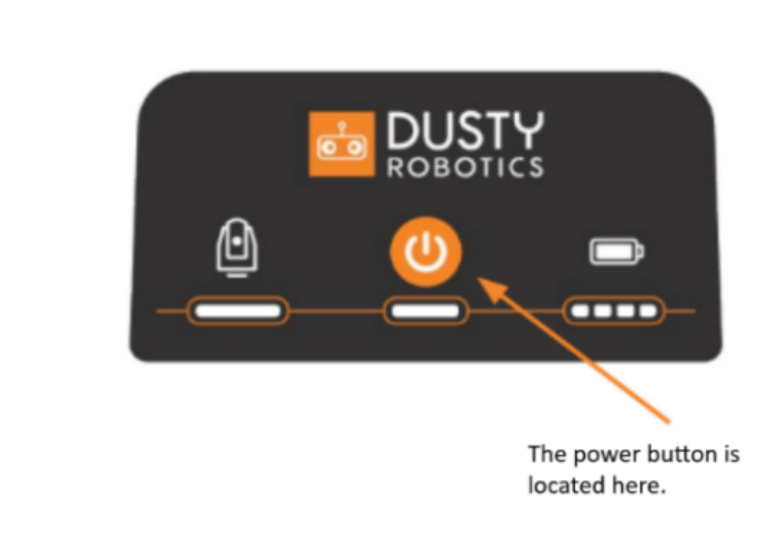

- Ensure the FieldPrinter 2 is powered off by following the article: Power Off FieldPrinter 2
- Ensure the Ink Cartridges are compatible by following the article: Ink Type

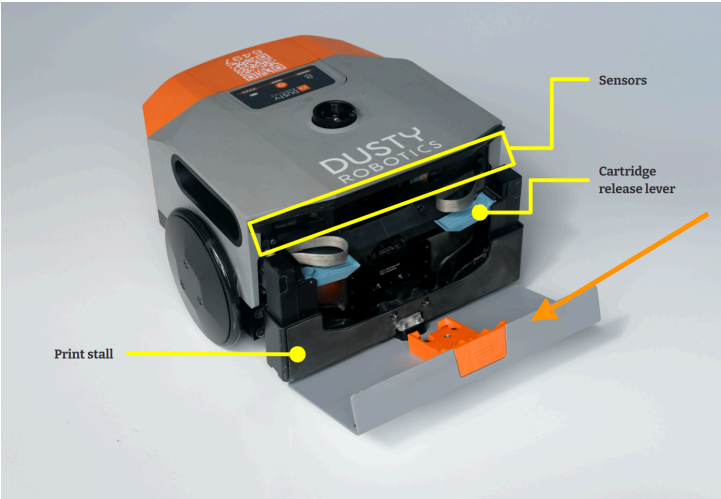

- Clean the Print Stall area by following the article: Requirements for Operating the FieldPrinter on a Jobsite
How to Install Ink Cartridges:
Ink cartridge installation:

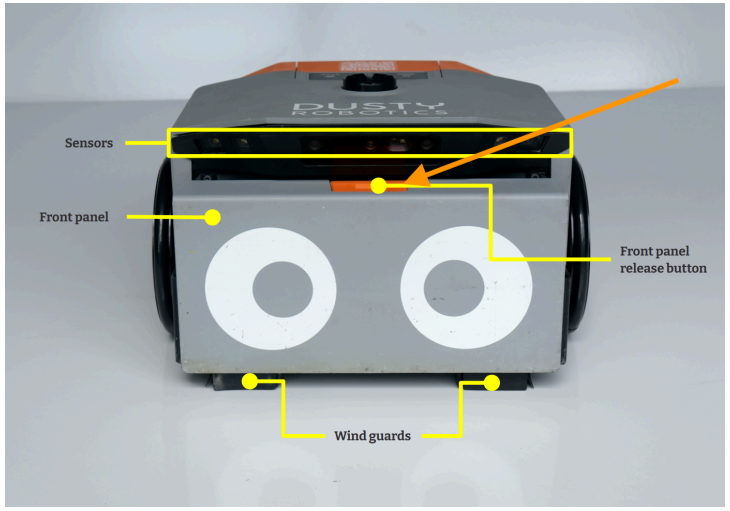

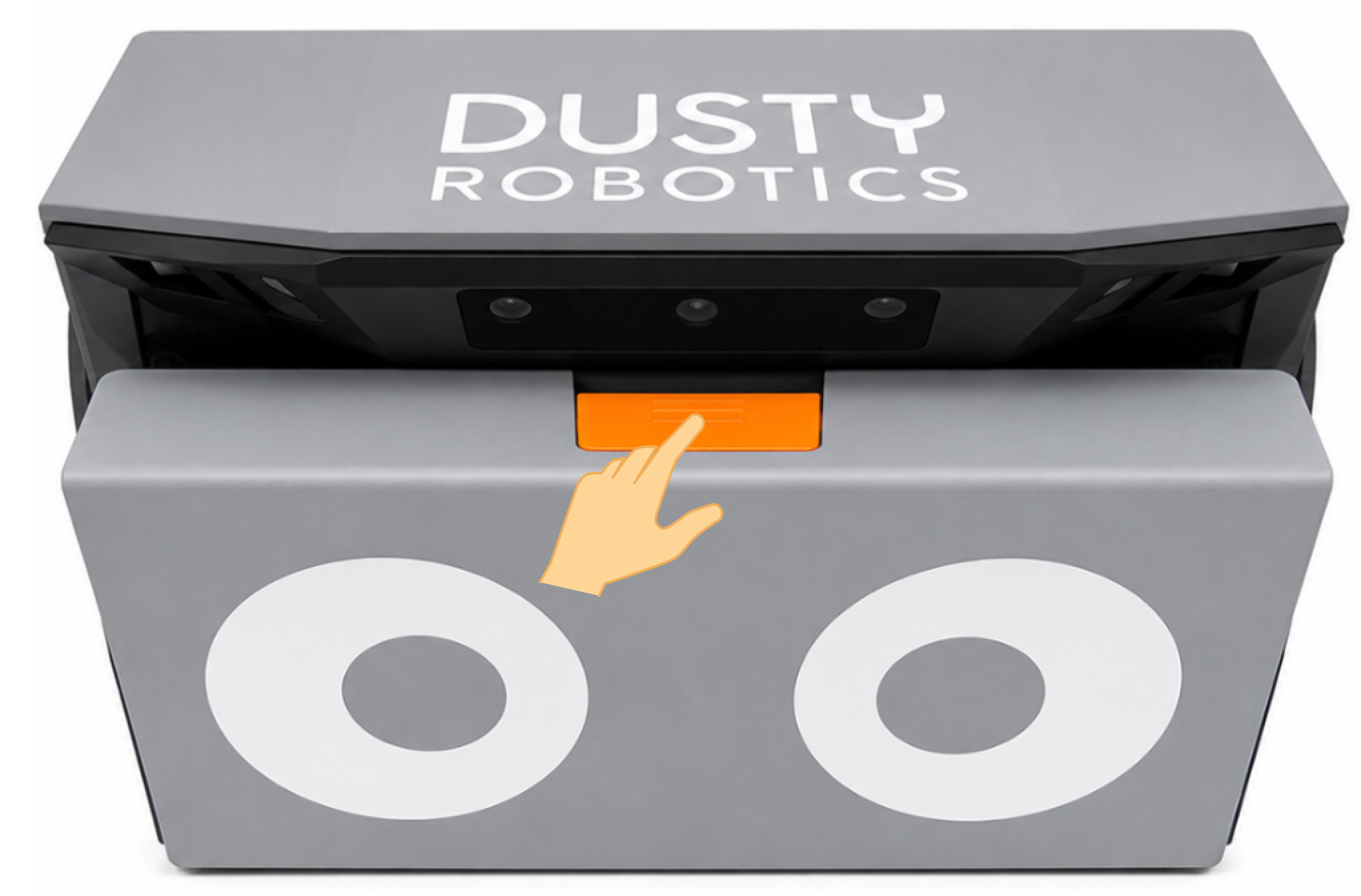

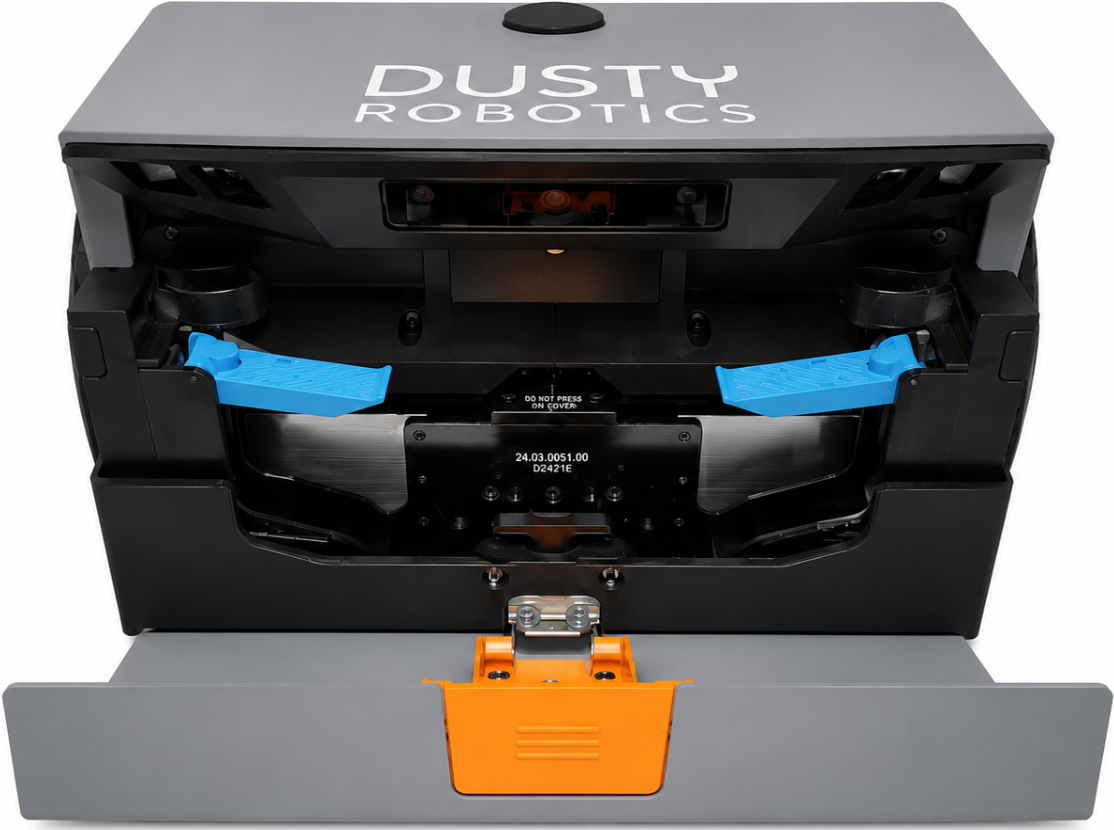

- Press the button at the center top of the printhead.

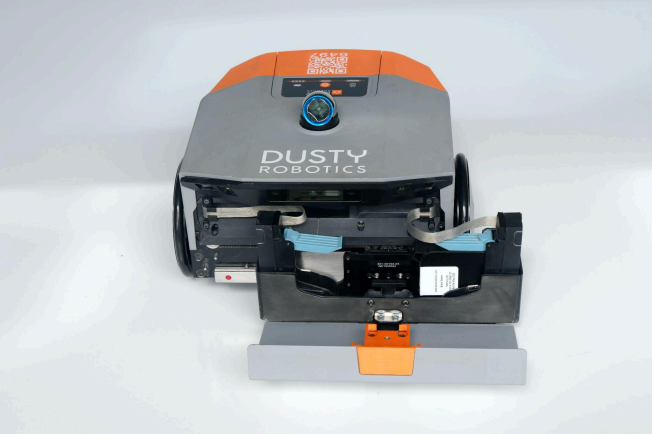

- Lower the front panel.

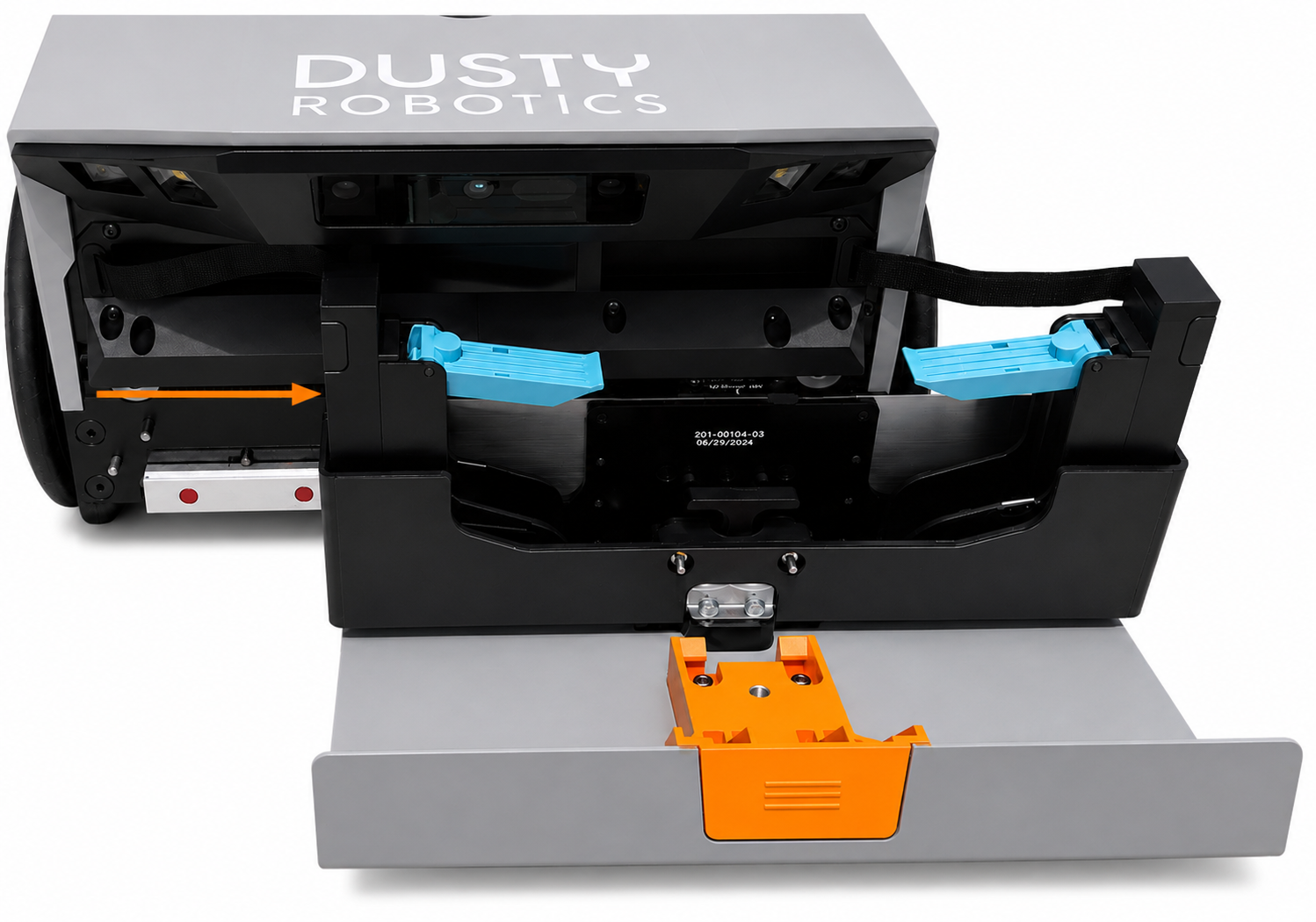

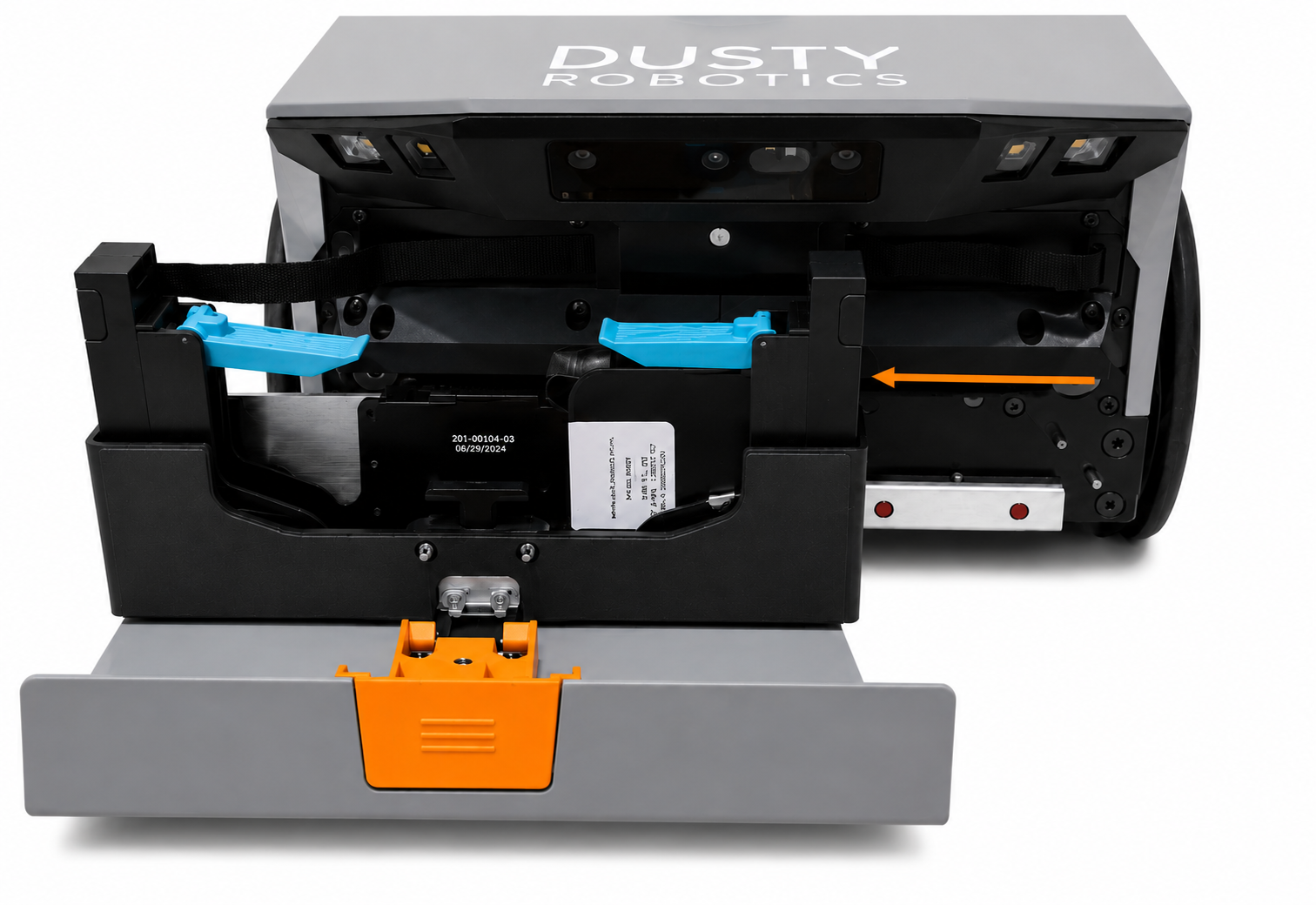

- Slide the printhead to the side.

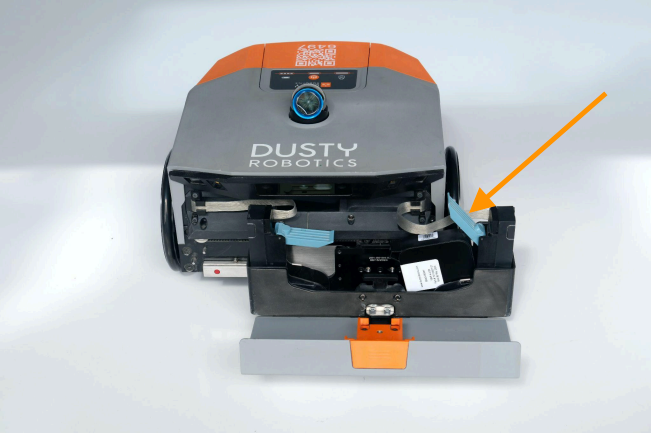

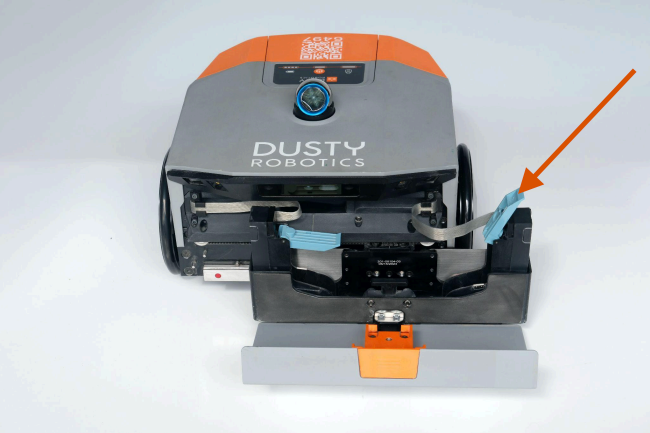

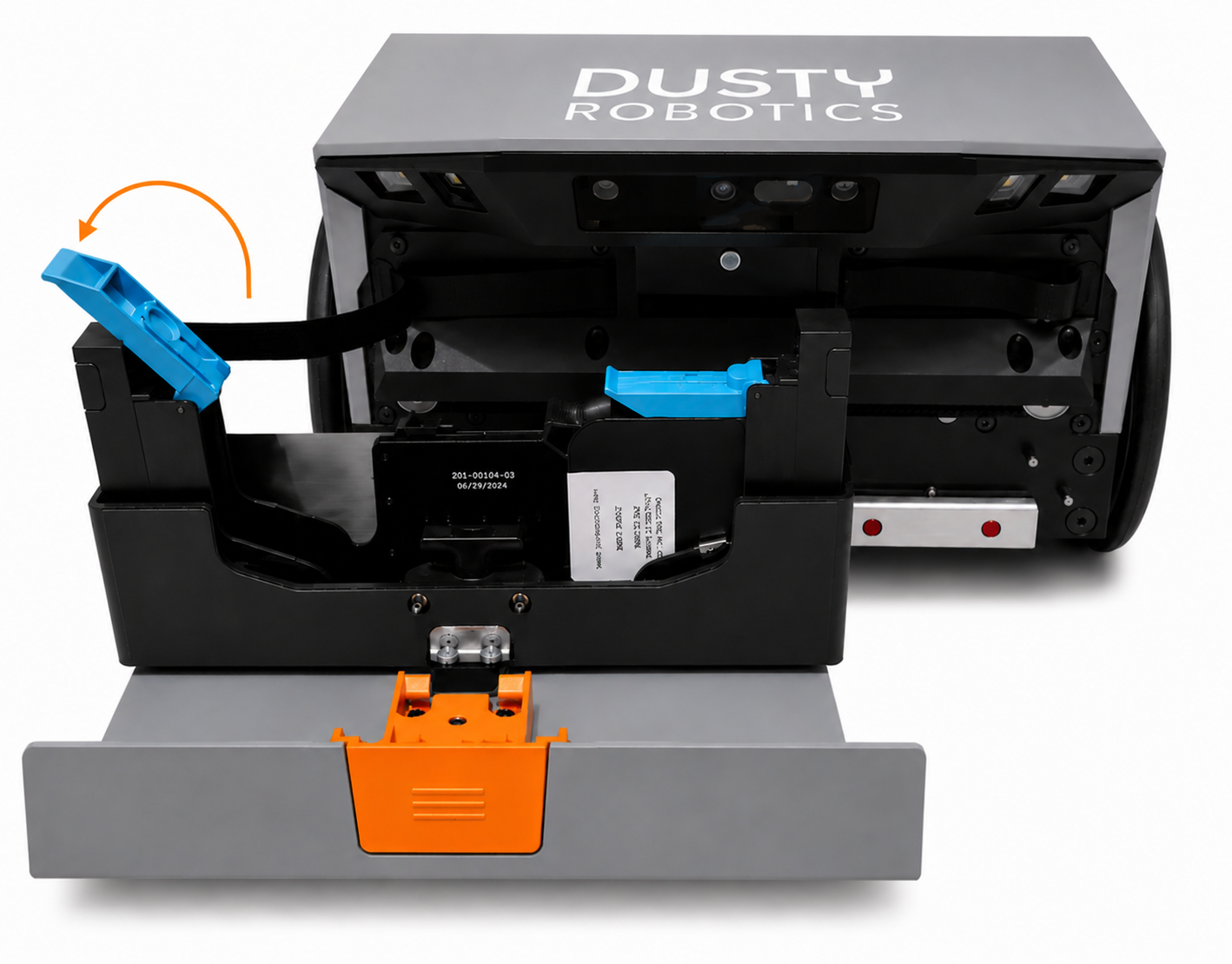

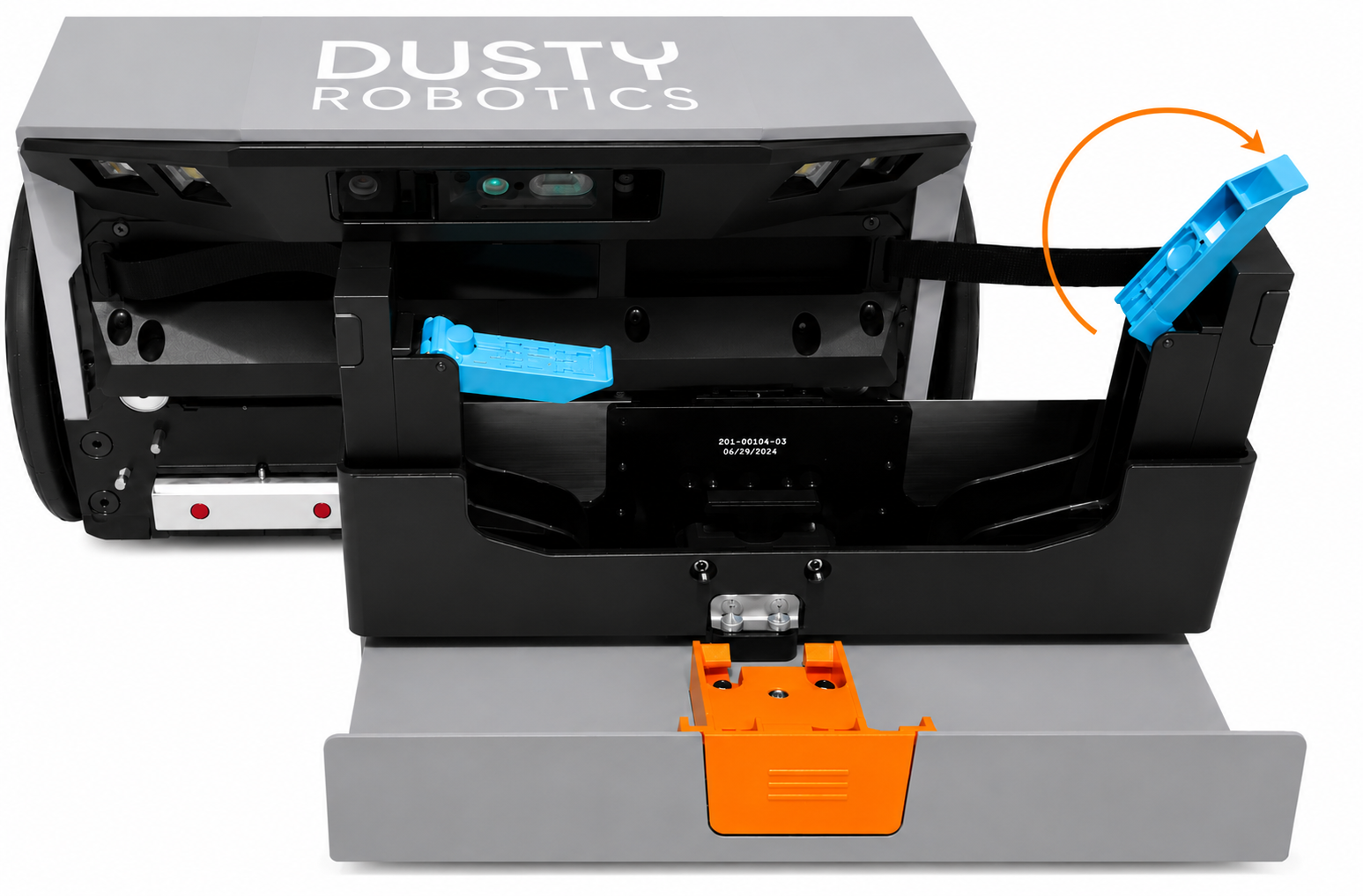

- Raise the latch and hold it up (mind the ribbon cable).

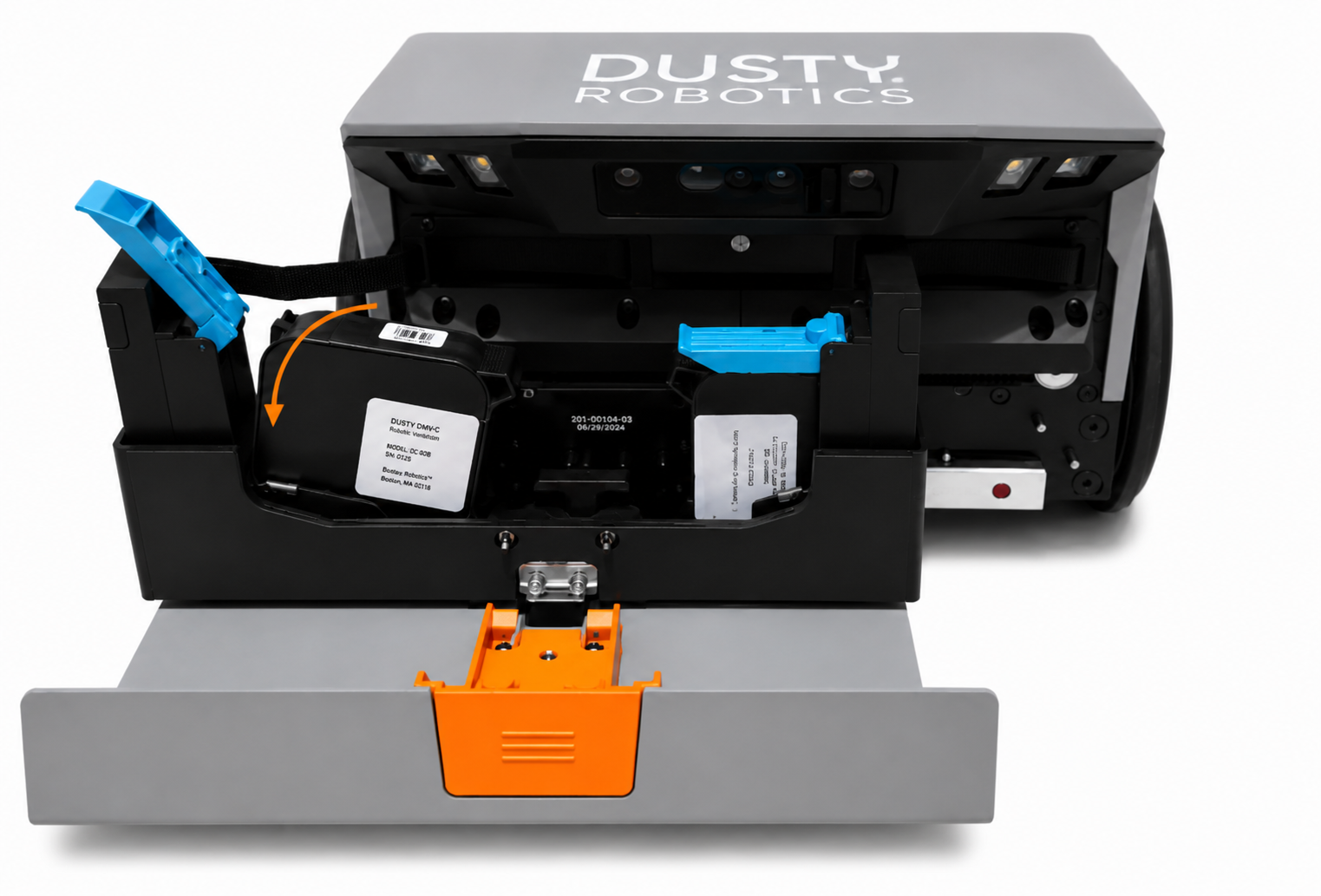

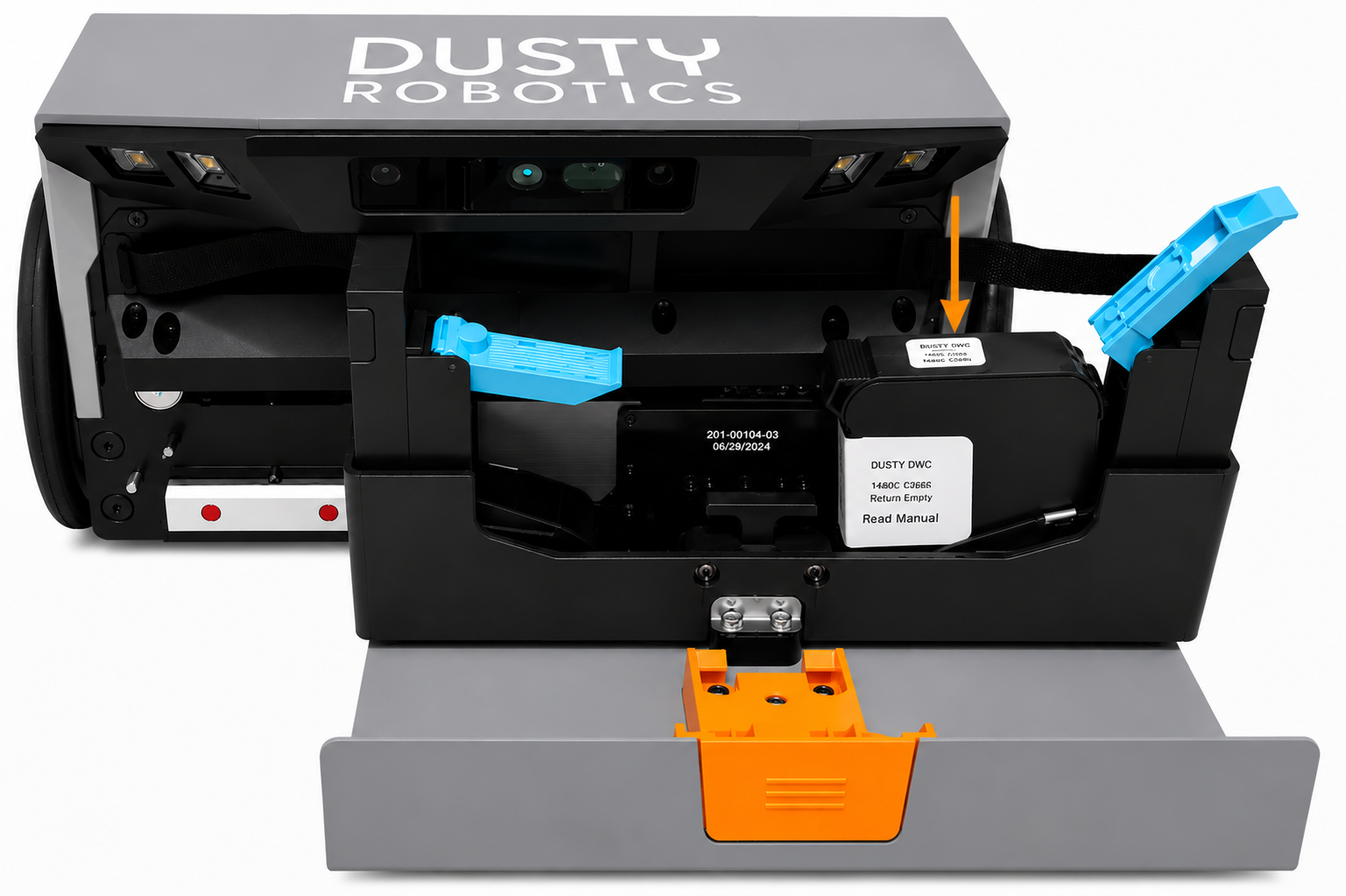

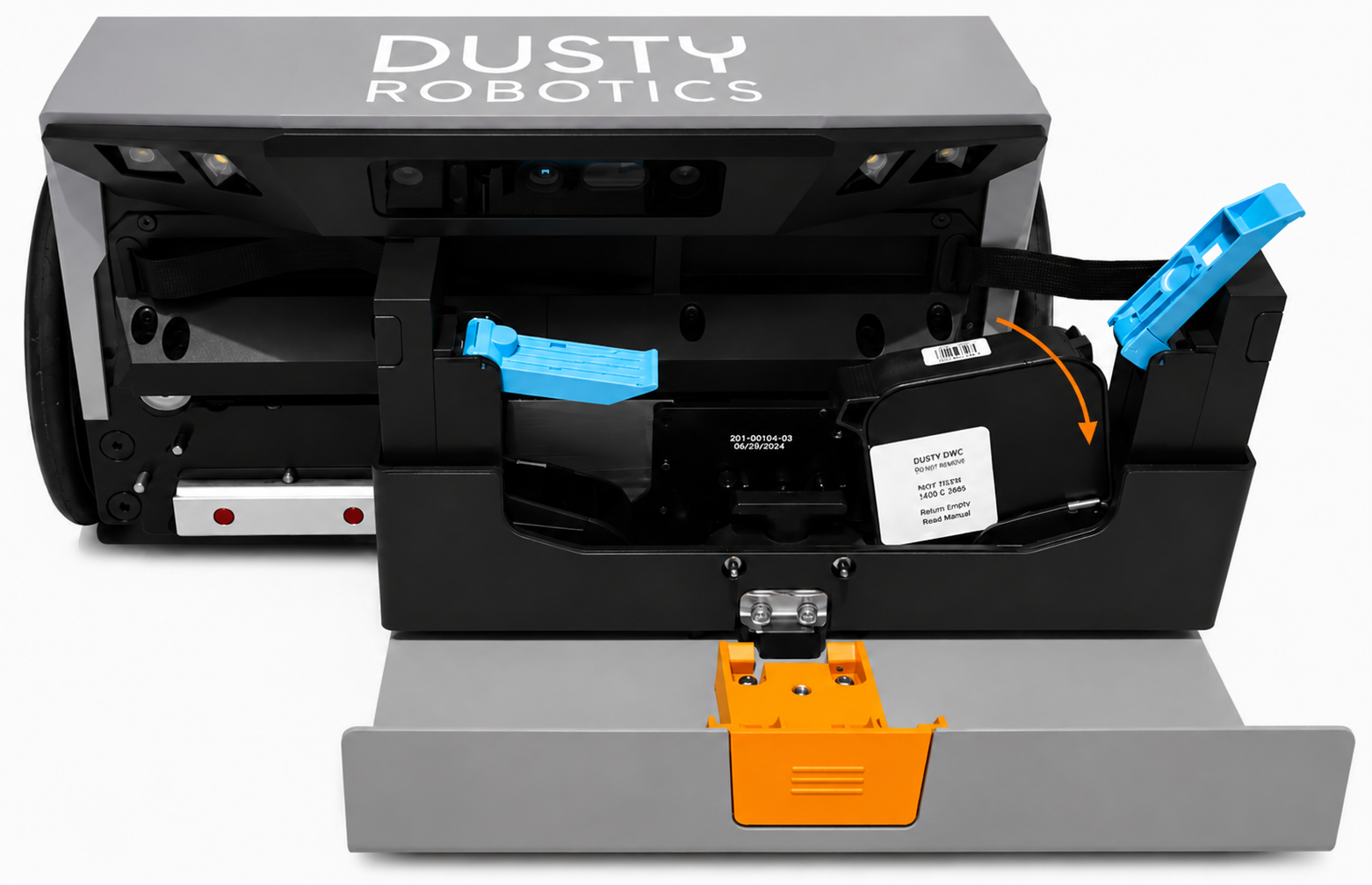

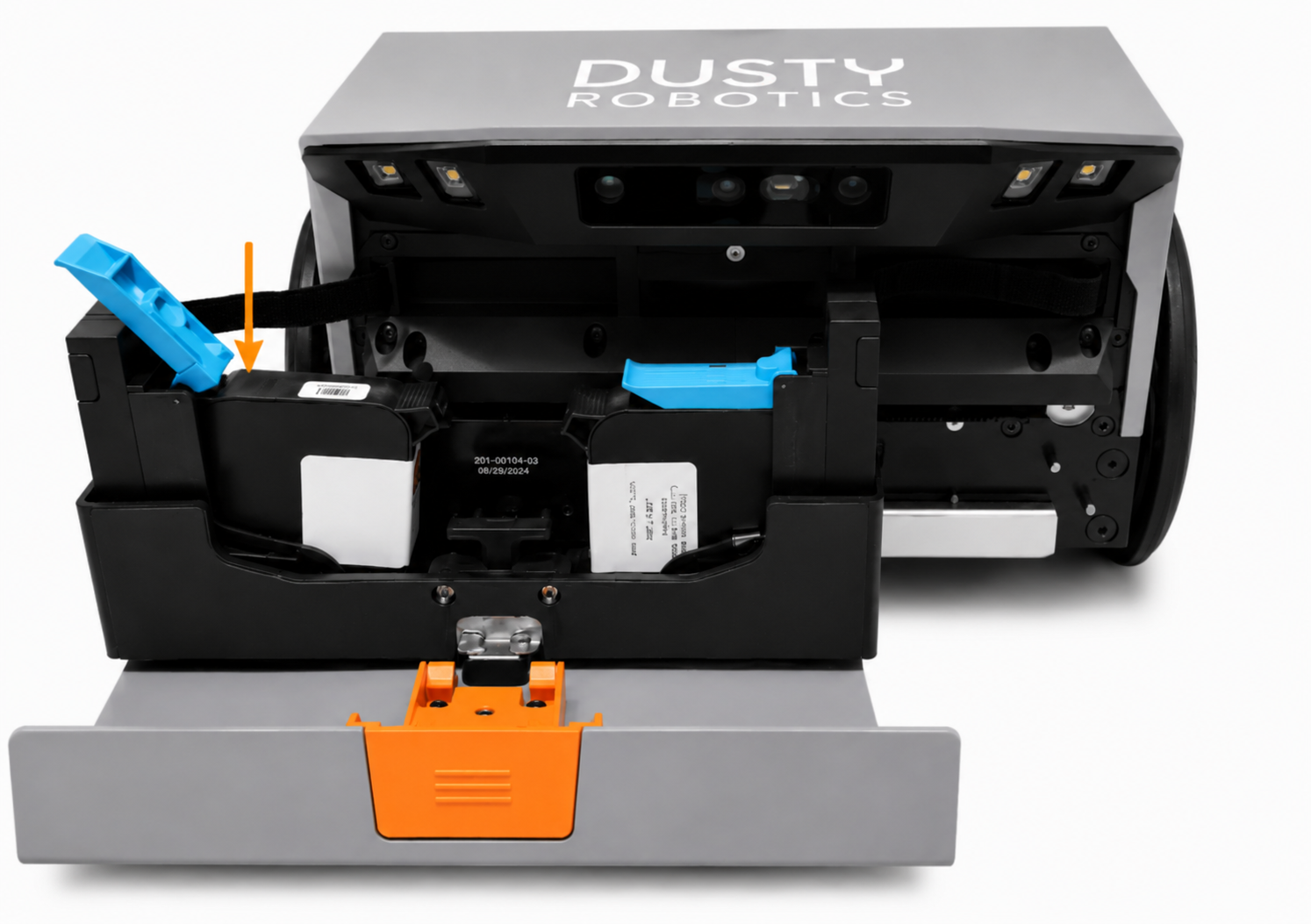

- Insert the cartridge — push it in starting at a slight diagonal angle, then vertically, until the cartridge is fully seated.
- Lower the latch flush.

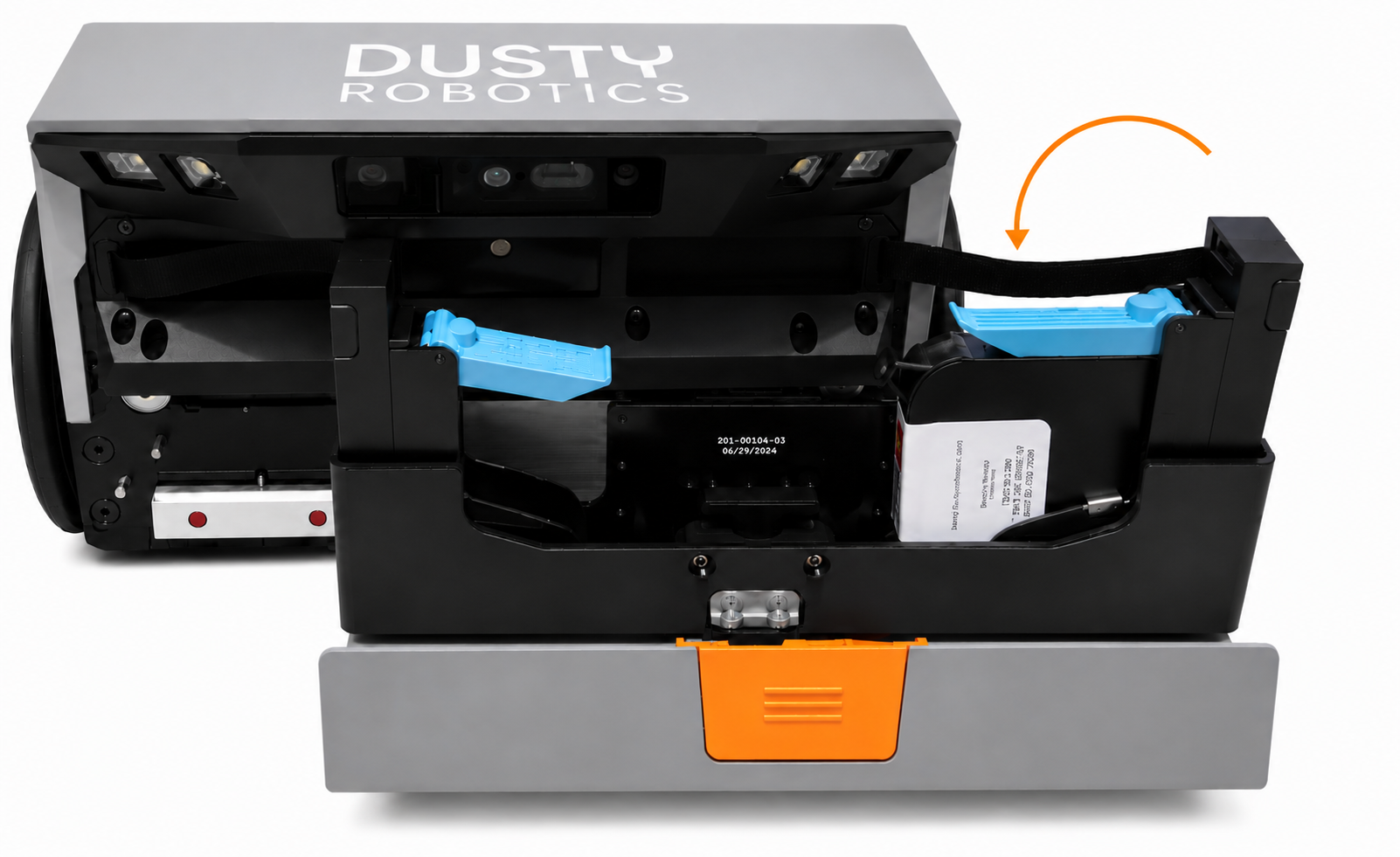

- Slide the printhead to the other side.

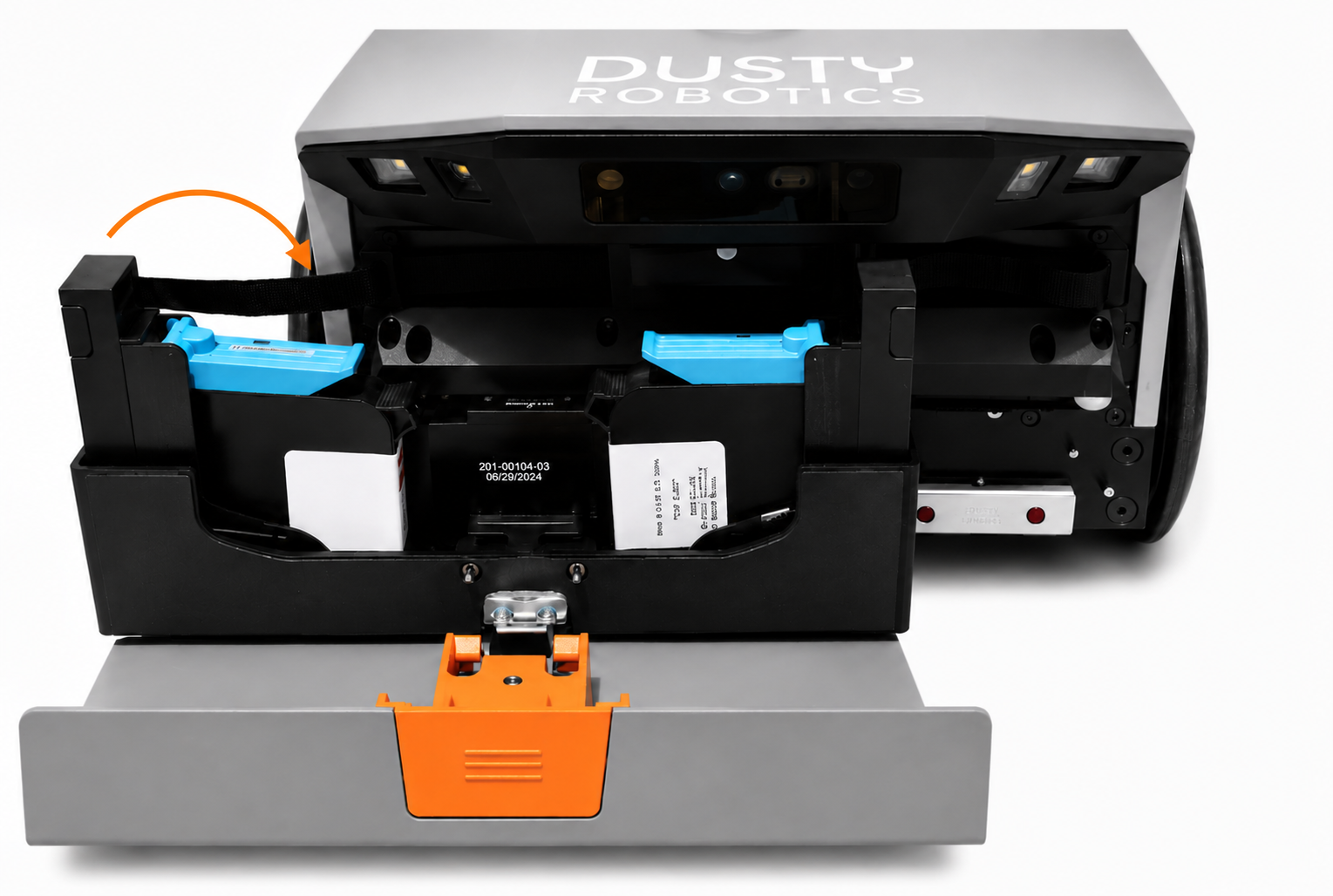

- Repeat all steps for the other side.

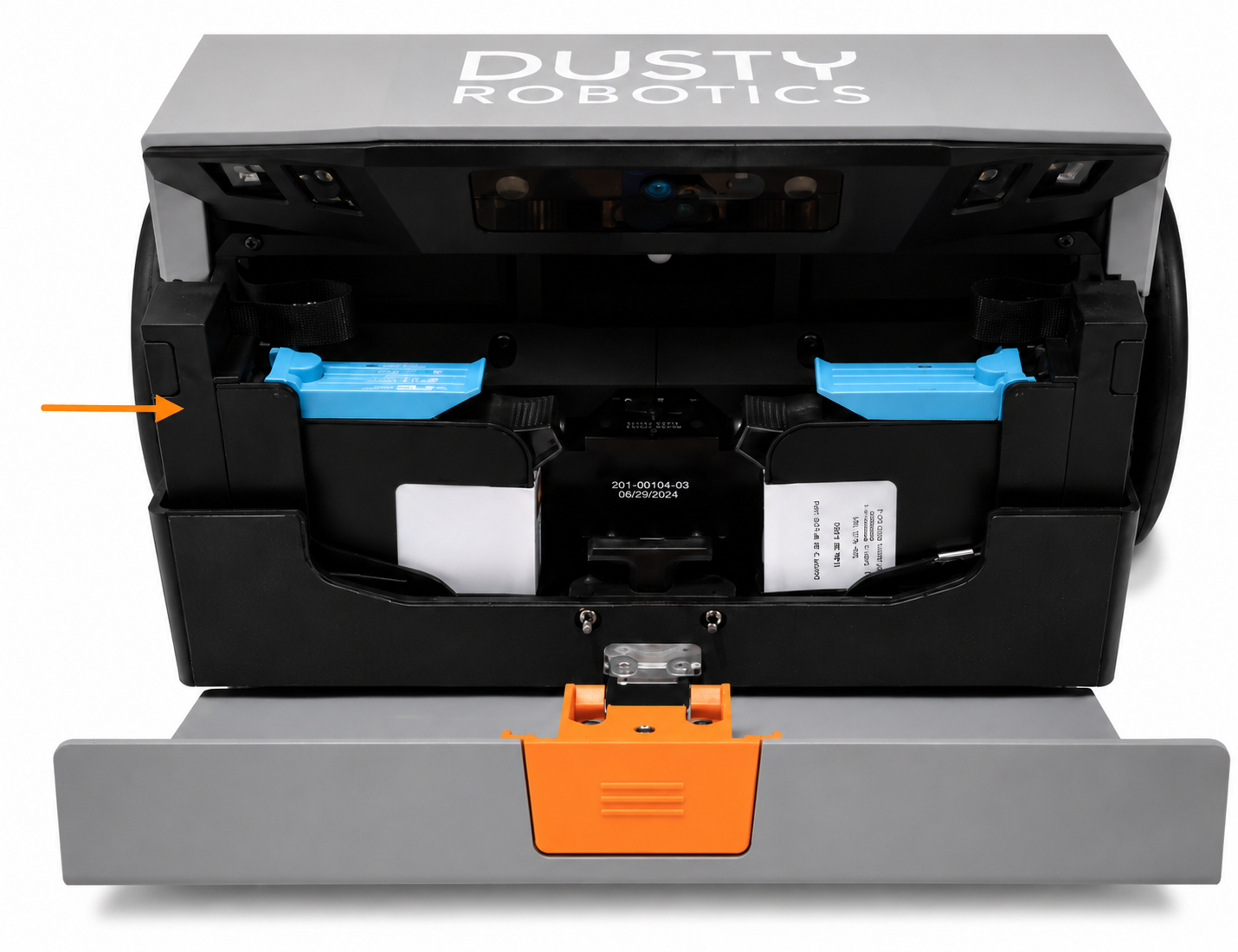

- Slide the printhead to the center.

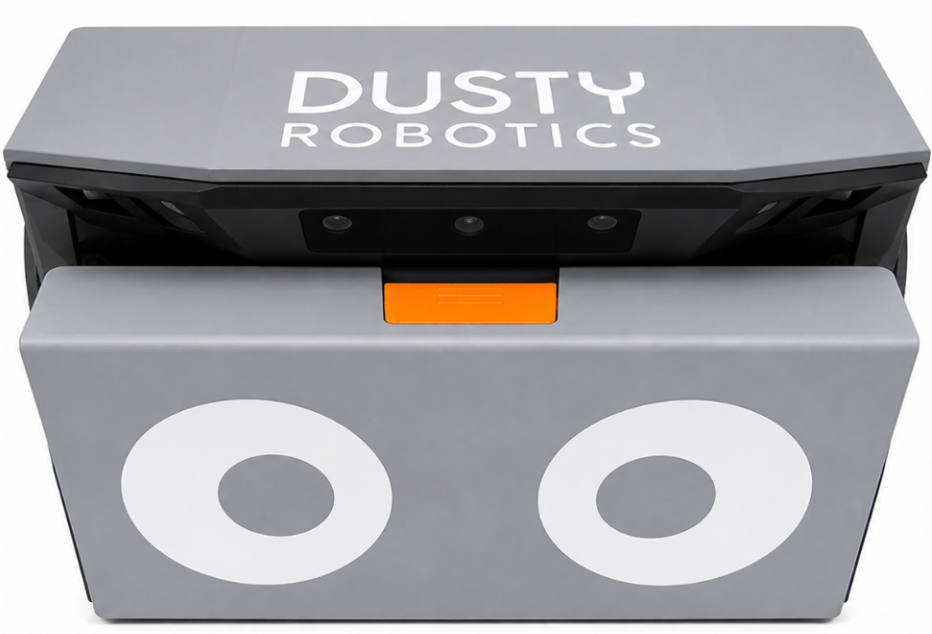

- Raise the front panel to close the printhead.
Ink temperature ranges
| Ink type | Operating range | Notes |
|---|---|---|
| Water-based | 30°F – 90°F (-1°C to 32°C) | Best for dry environments; black, red, blue available. |
| Solvent-based | 25°F – 95°F (-4°C to 35°C) | Permanent ink. Best for low temps and slightly moist concrete; black available only. |
If cartridges have been stored cold (below 14°F (-10°C) water-based, below -4°F (-20°C) solvent-based), allow them to reach room temperature (68–72°F (20–22°C)) before use.
⚠️ Store inks cool, dry, and out of direct sunlight.
