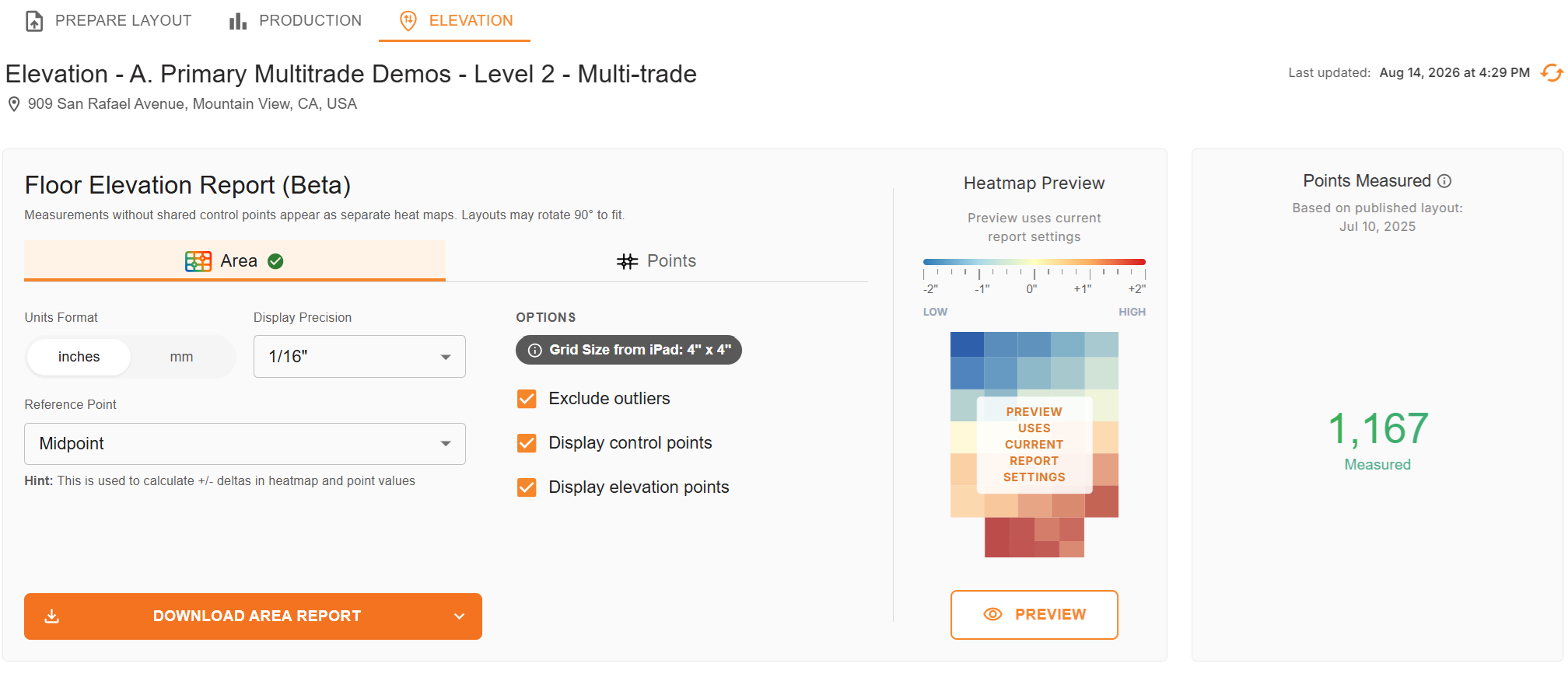

After the robot uploads its data, open the layout's Elevation tab in the Dusty Portal. The Floor Elevation Report shows a heatmap preview, an on-page summary, and downloadable reports. Switch between Area and Points at the top to see each measurement type.
Set these before you preview or download:
- Units: inches or millimeters.
- Display precision: 1/32", 1/16", 1/8", or 1/4".
- Reference point: the baseline every elevation is measured against — Highest Elevation (all others read negative), Midpoint (above read positive, below read negative), or Lowest Elevation (all others read positive). This drives the +/- values in the heatmap and reports. Changing it recalculates from the same data — no re-measuring. The reference is relative only to the points measured in that session, not to a real-world or control-point datum.
- Options: Exclude outliers, Display control points, and (in Area) Display elevation points.
Click Preview to render the heatmap, or Download Area Report / Download Points Report to export.
On-page summary

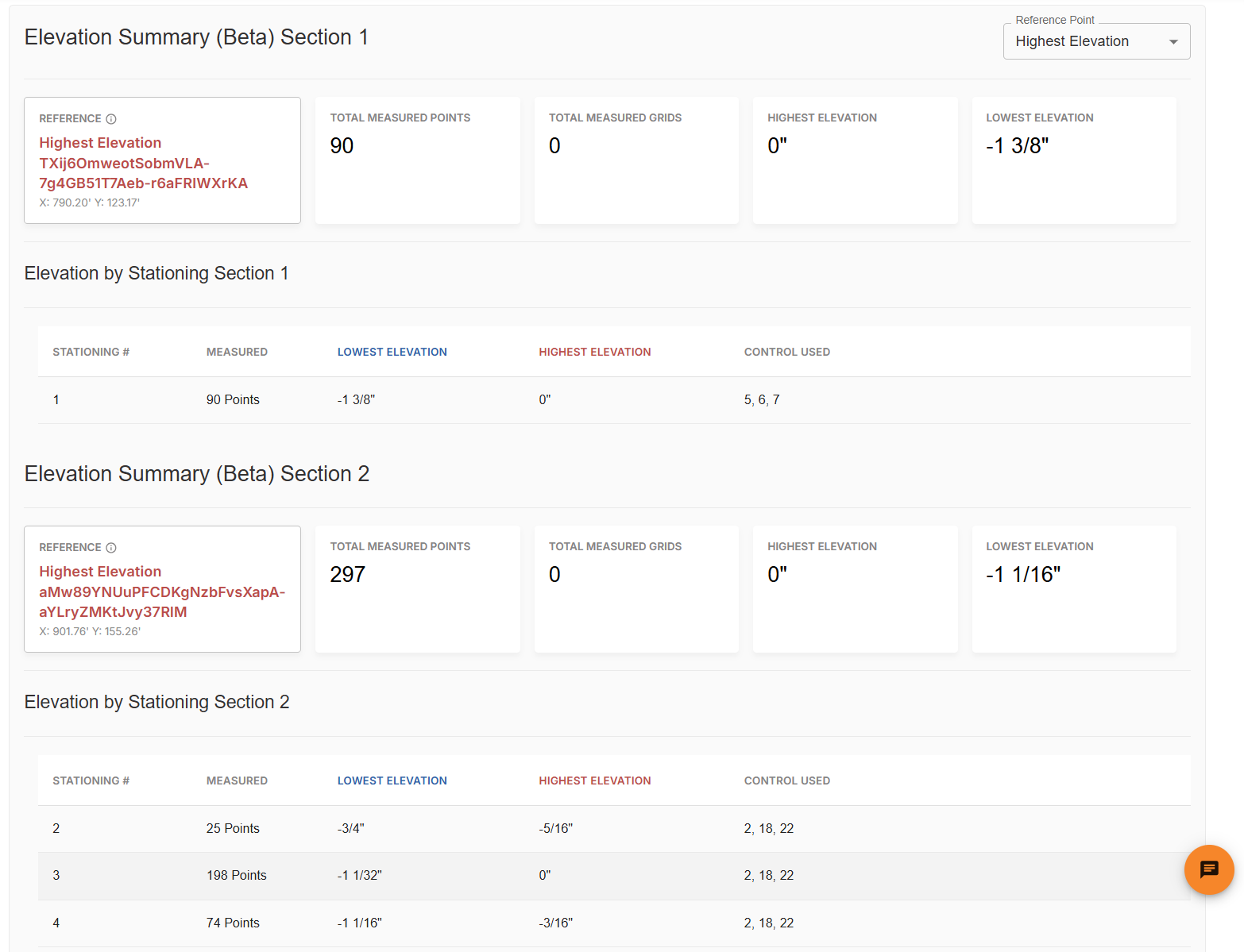

Below the report controls, the Elevation tab lists an Elevation Summary and an Elevation by Stationing table for each section: total measured points, total measured grids, highest and lowest elevation, and — per stationing — the number measured and the control points used. Measurements that don't share a control point across stationings appear as separate sections, each with its own heatmap.
Outliers
An outlier is a single reading that sits far enough from the rest that it's almost certainly noise — the robot passing over rebar, a chair, debris, or a curb edge — rather than real slab condition. The Portal flags outliers with a standard statistical rule, and the Exclude outliers option drops them so one bad value doesn't skew the heatmap or the numbers. For the full explanation, see What Is an Outlier in the Elevation Tab?.
Downloads

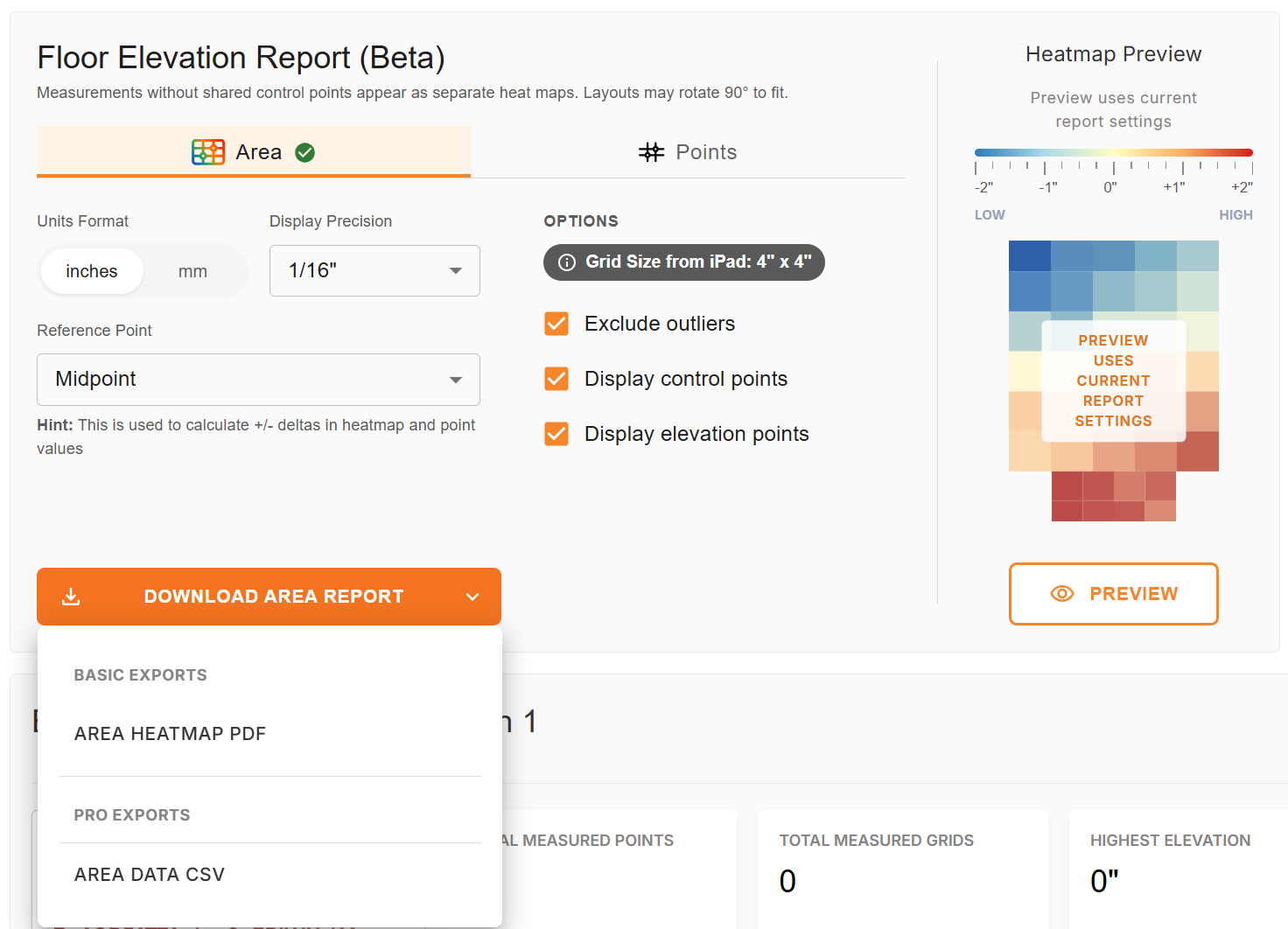

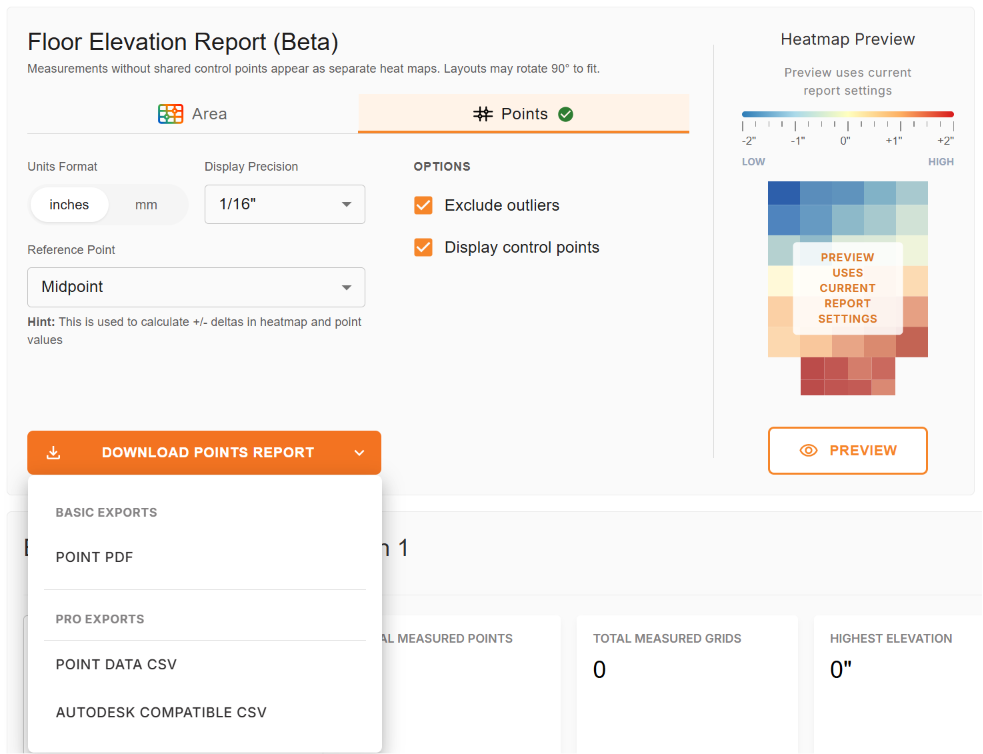

From the Elevation tab, open the download menu:

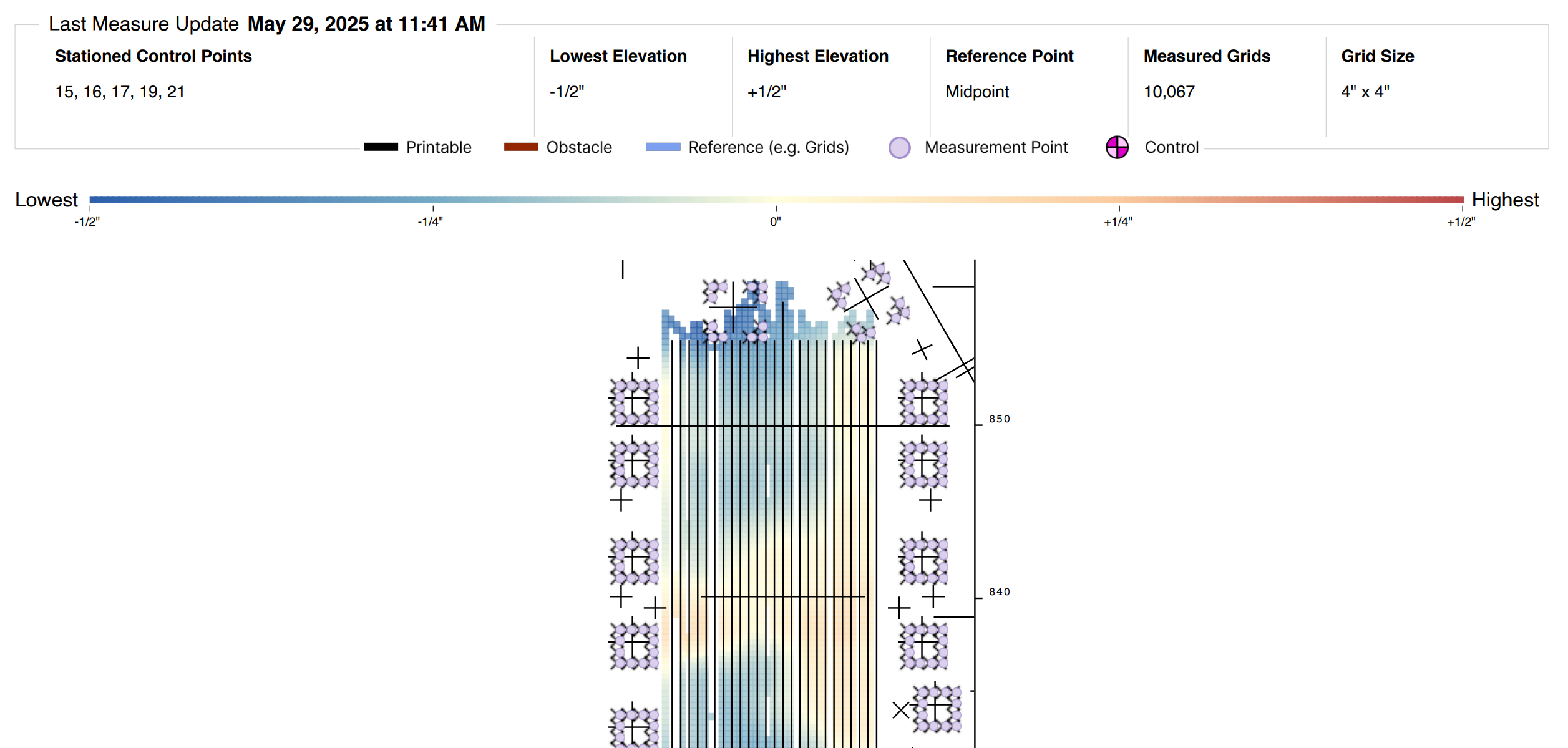

- Area Heatmap PDF — the printable heatmap.
-

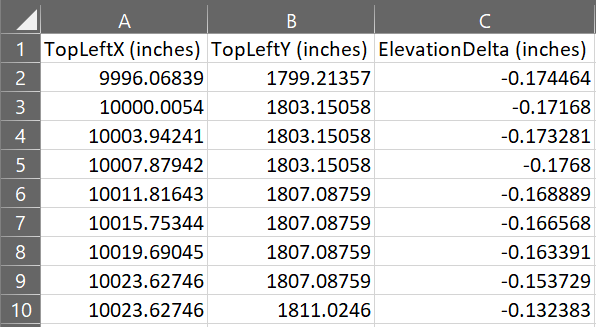

Area Data CSV — one row per grid cell, with columns
TopLeftX (inches),TopLeftY (inches), andElevationDelta (inches). This downloads as a ZIP containing one CSV per stationing; if a control point is shared across stationings, the data merges into a single CSV. - Point PDF — each measured point plotted and labeled with its elevation.

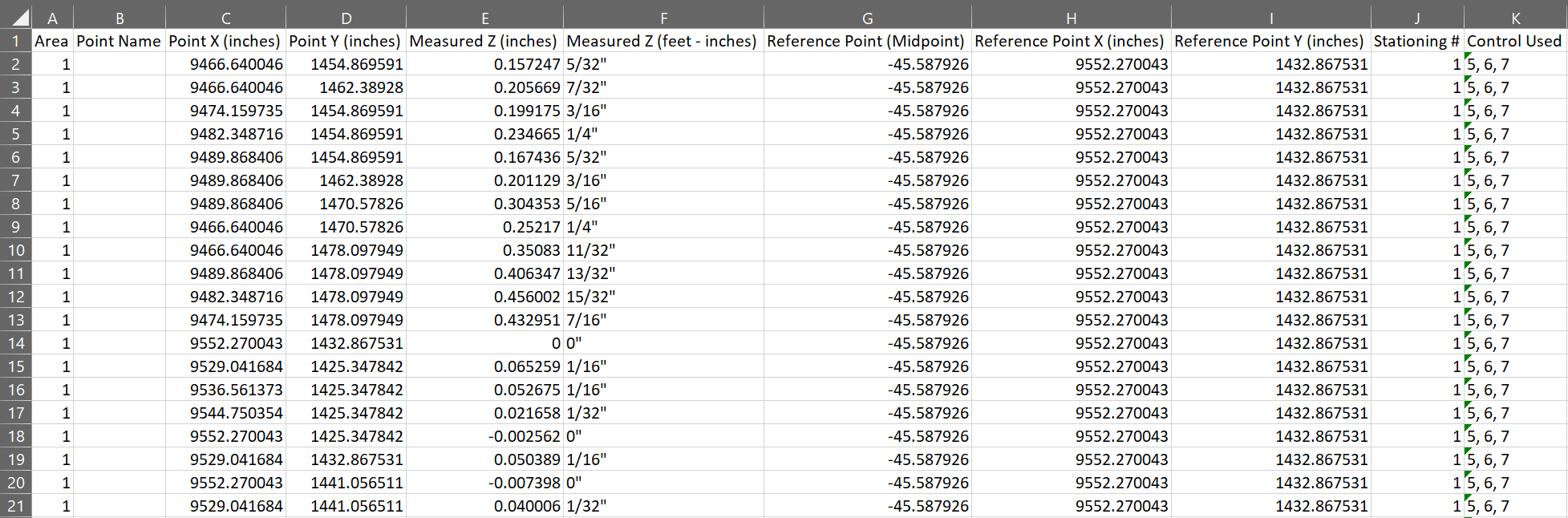

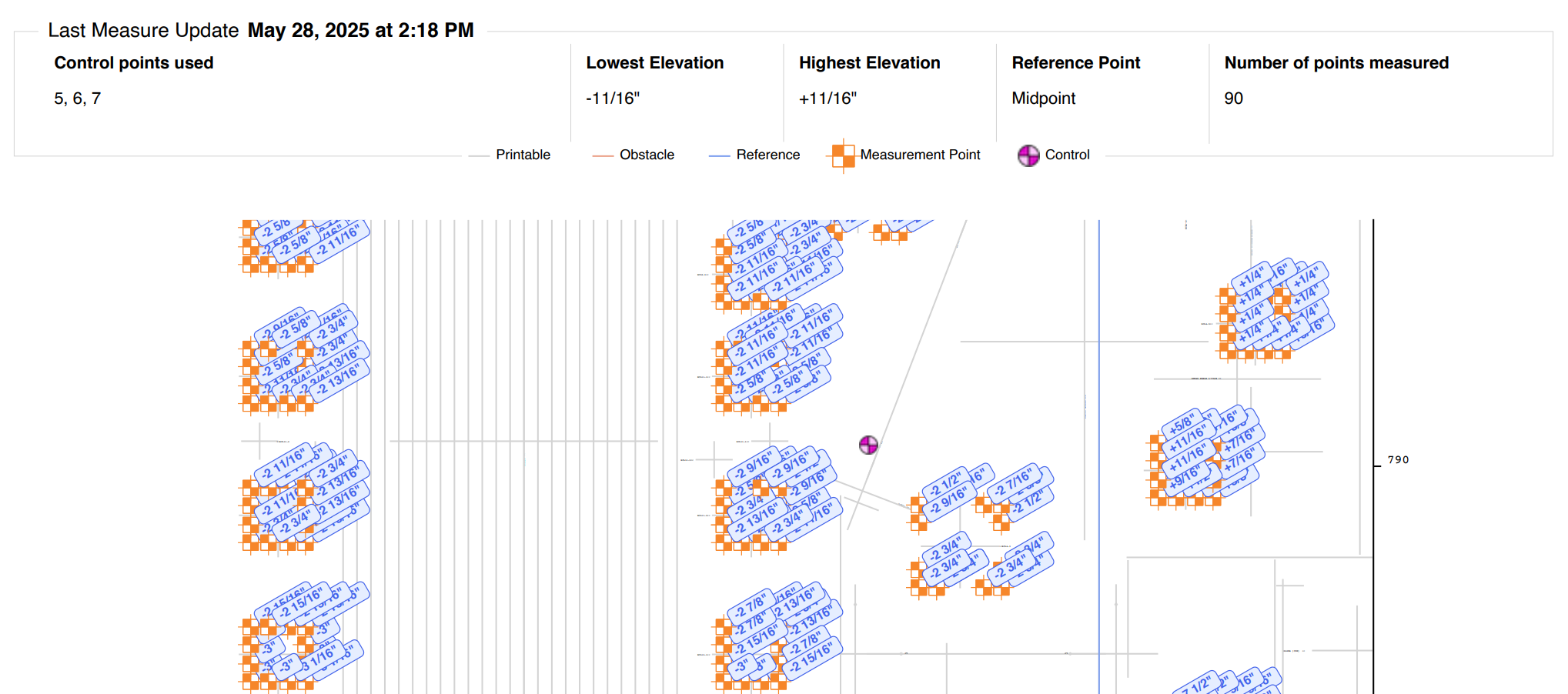

- Point CSV — full numerical data per point: area, point name, point X/Y, measured Z (in both inches and feet-inches), the reference point and its X/Y, stationing number, and control used.
-

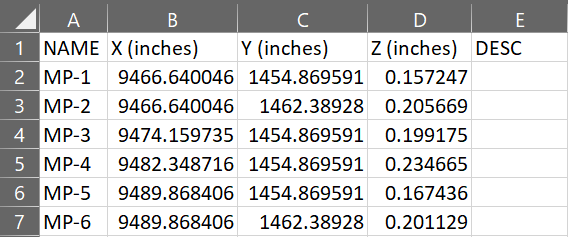

Autodesk-compatible Point CSV — columns
NAME,X,Y,Z,DESC, already formatted for Autodesk Point Layout. Import it into AutoCAD with no edits.
Current limitations
- Floor Elevation does not print elevation values onto the slab as a same-day output. To mark elevations on the floor, take the Point CSV through CAD and print them on a second pass.
- It does not generate an ACI-format FF/FL flatness/levelness report.
