When your Dusty FieldPrinter arrives, use this article to unpack it, confirm every item made it into the box, and know what to do before your first setup. It answers "what's in the box," "what should be in my cases," and "what came with my FieldPrinter."
Your FieldPrinter system ships as a set of cases. The exact contents can vary by job, so check your delivery against the lists below and report anything missing or damaged to Dusty Support.
What ships with your FieldPrinter
FieldPrinter (FP2) case

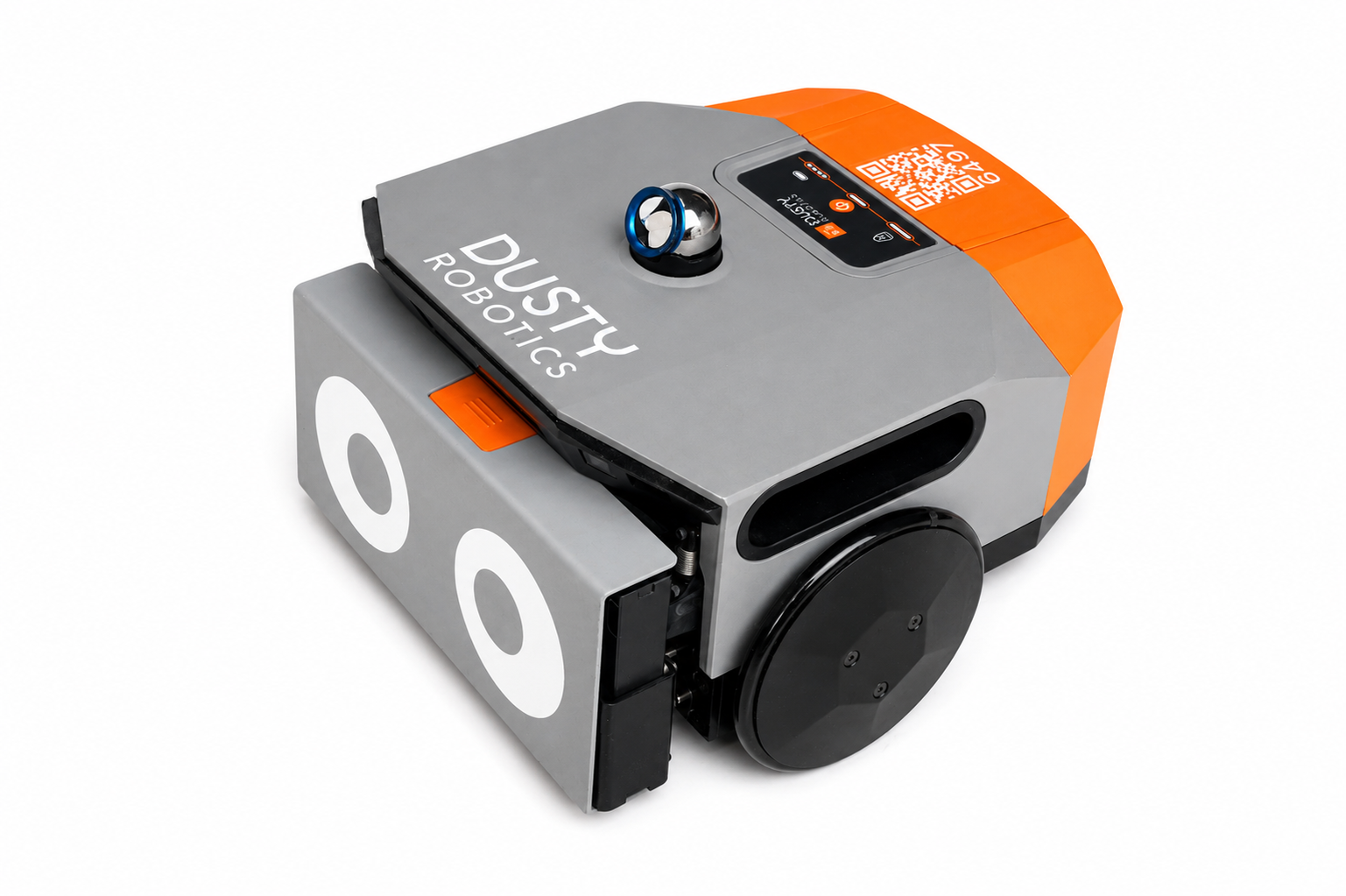

☐ FP2

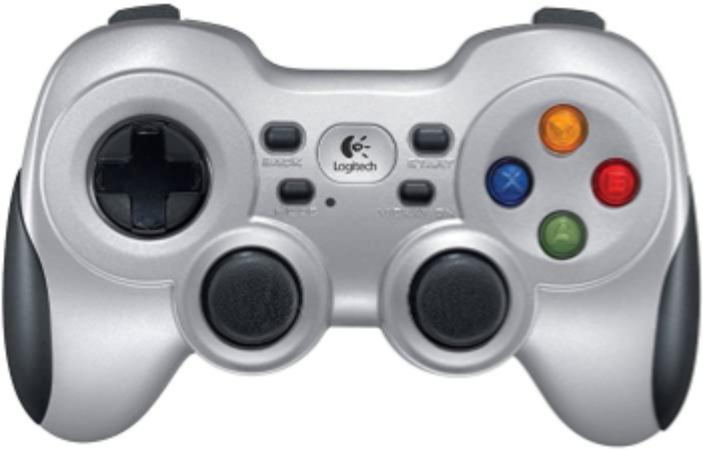

| ☐ Joystick Controller
|

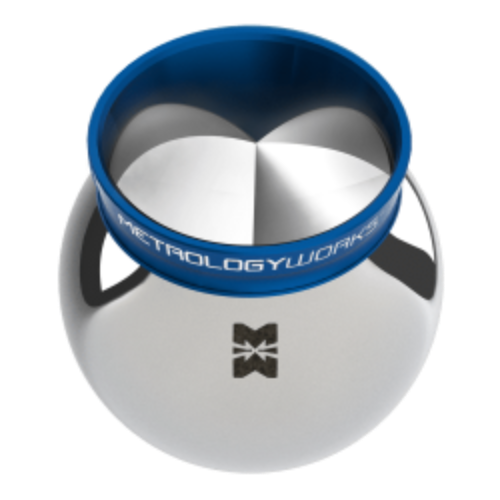

☐ 2 × Blue Ring Reflectors

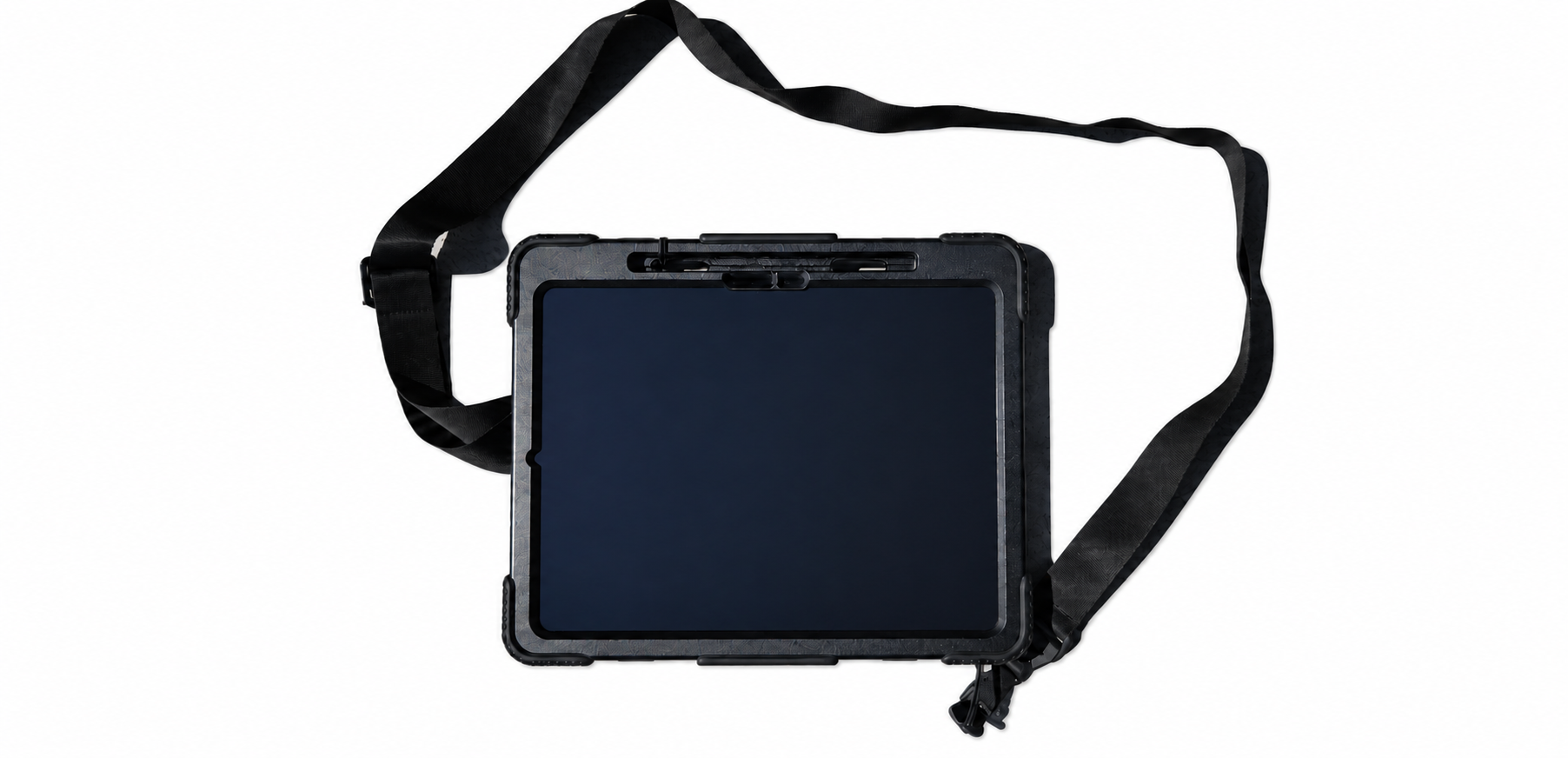

| ☐ iPad Pro 13 inch with case and strap |

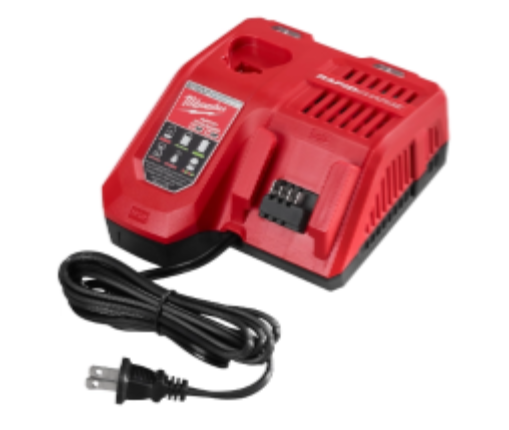

☐ Milwaukee M18 Battery Charger

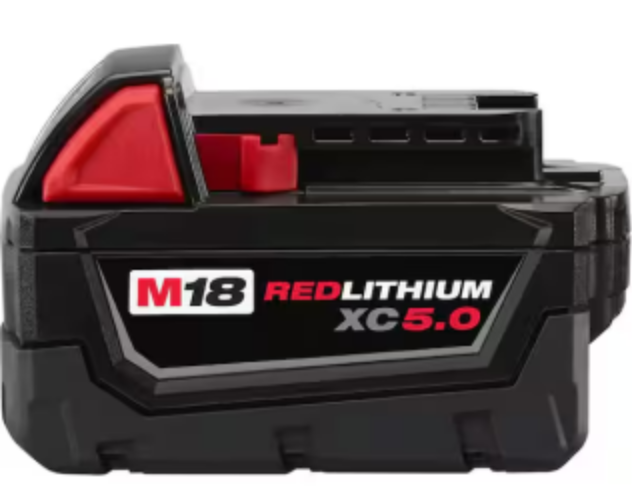

| ☐ 2 × 5Ah Milwaukee M18 Batteries
Each FP2 5Ah battery lasts 2-3 hours of print time and takes ~2 hours to recharge. |

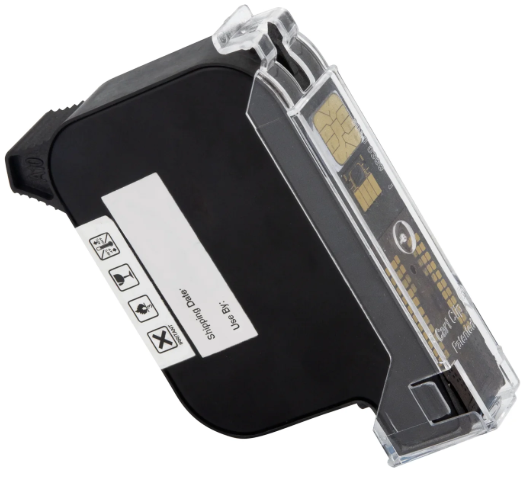

☐ Ink cartridges for the print job | ☐ Accessories Pouch
|

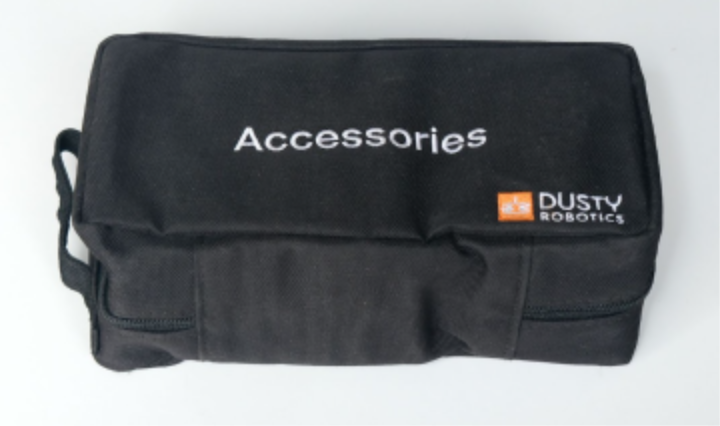

Accessories pouch (packed inside the FP2 case)

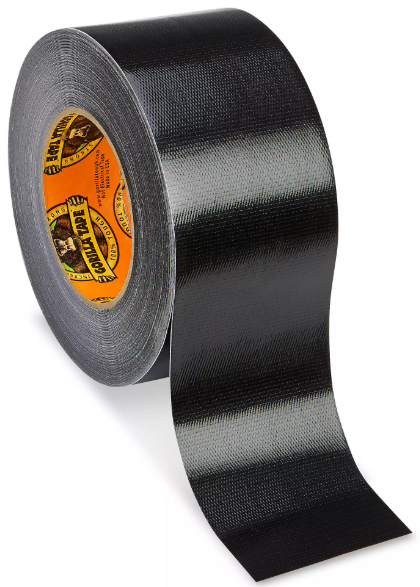

☐ 2 × Verification Reflectors | ☐ 1 × Black Duct Tape |

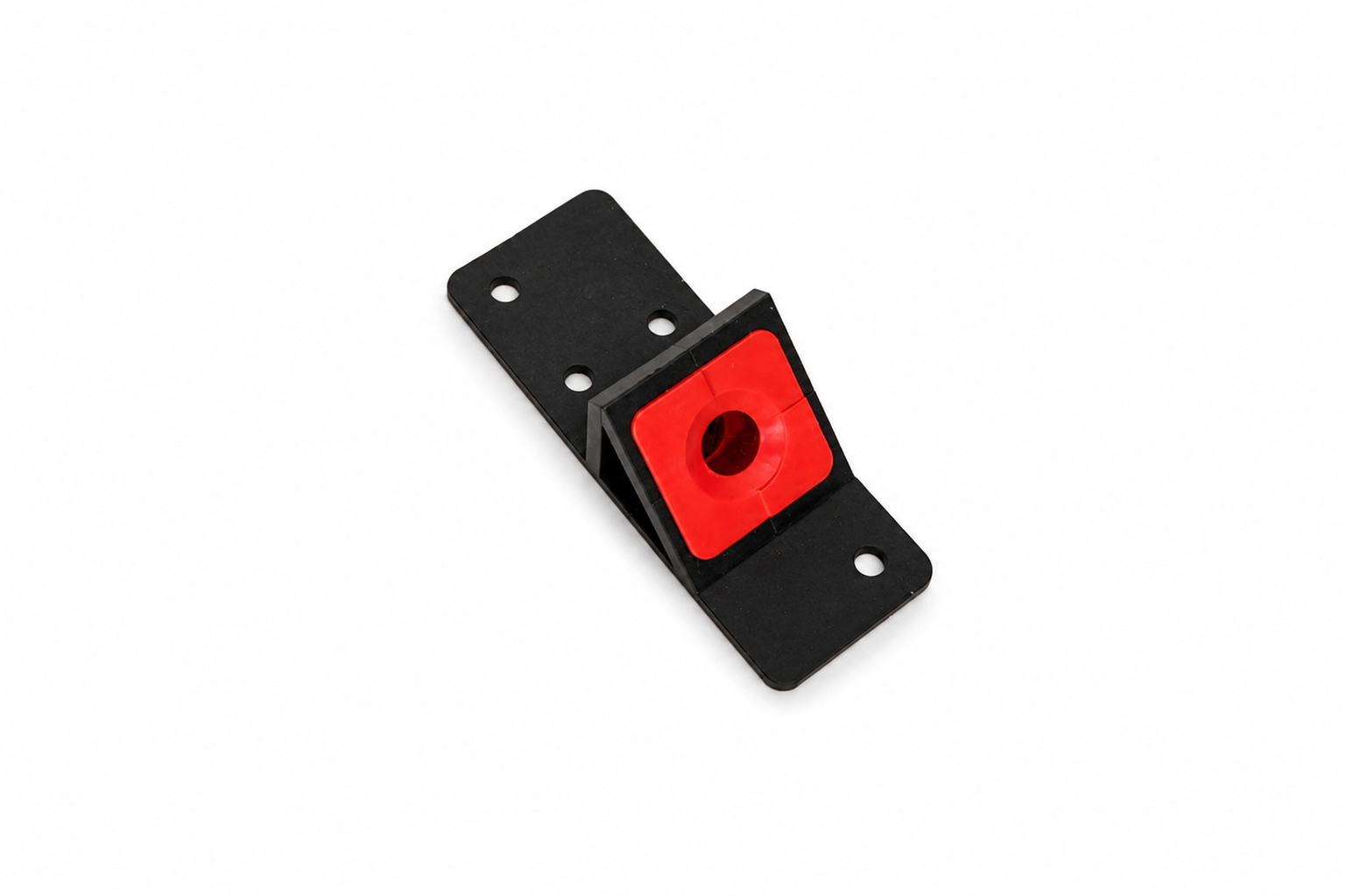

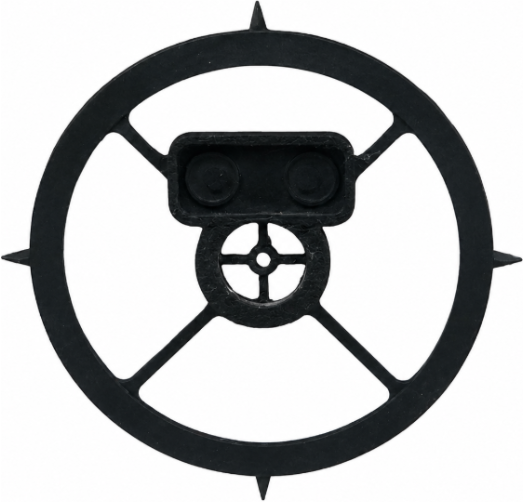

☐ 3 × Control Point Targets

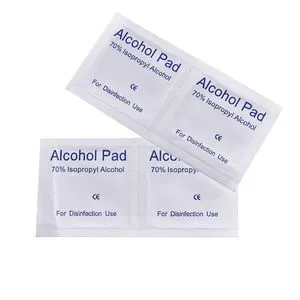

| ☐ 15 × Ink Nozzle Cleaning Wipes
|

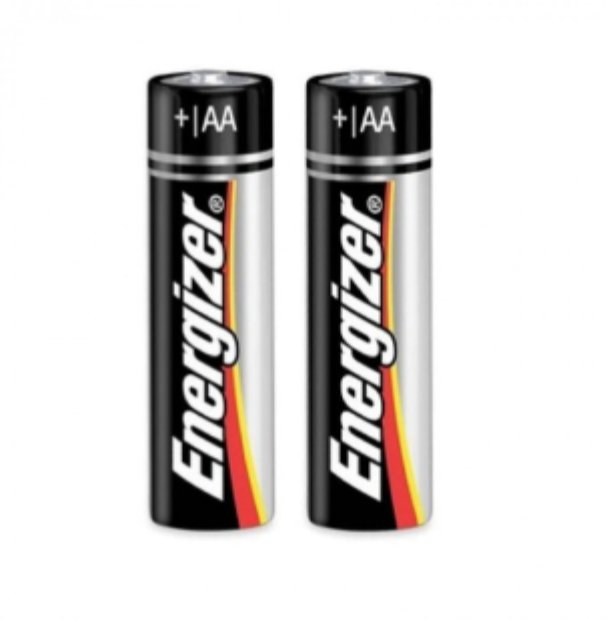

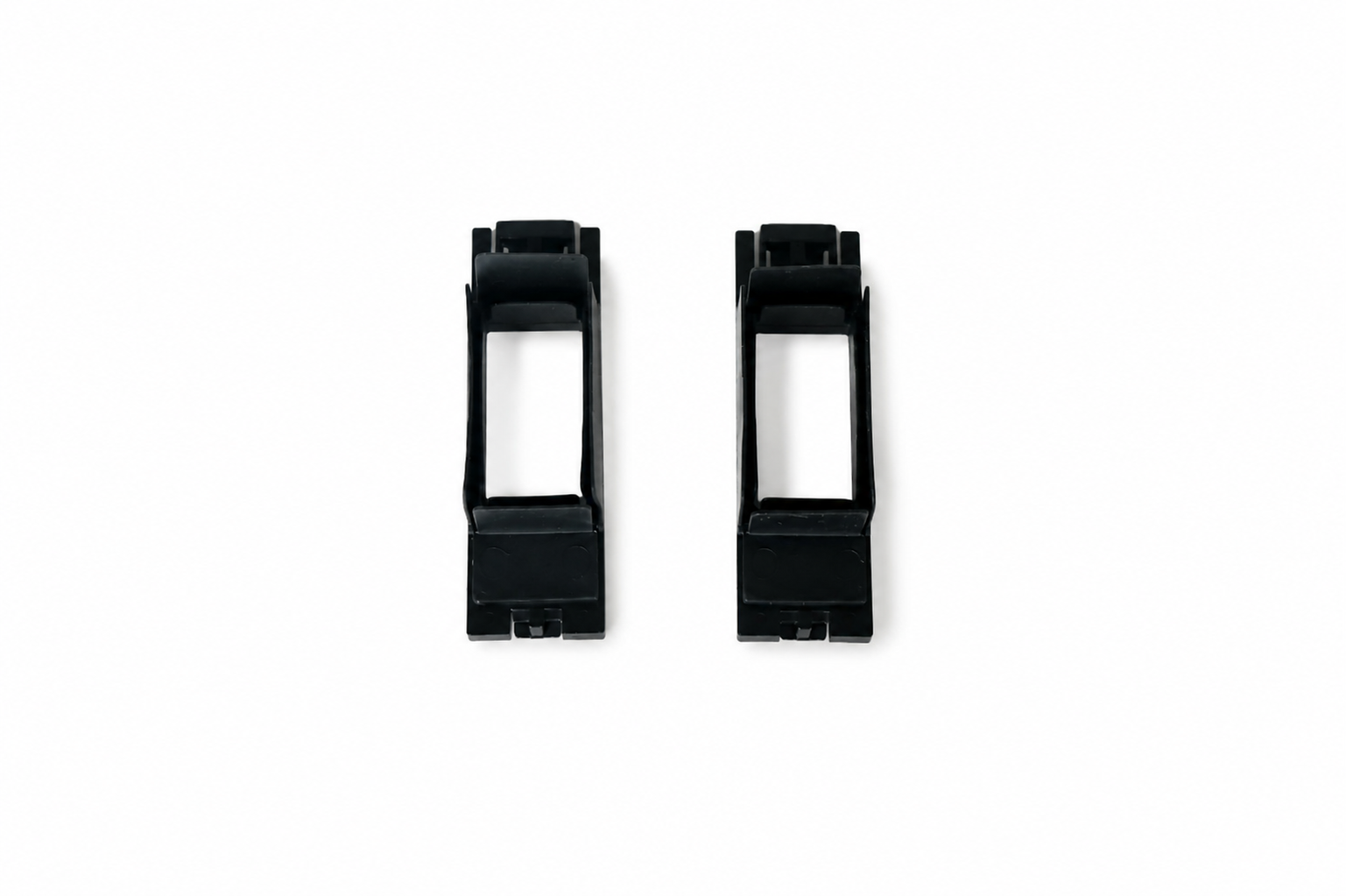

☐ 2 × Wind Guards | ☐ 2 × AA Lithium Batteries
|

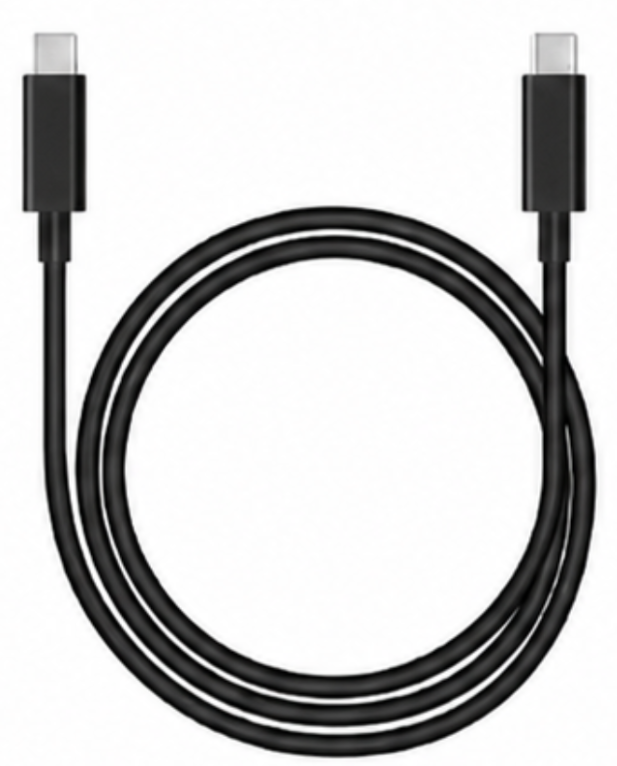

☐ 1 × USB-C Charging Cable

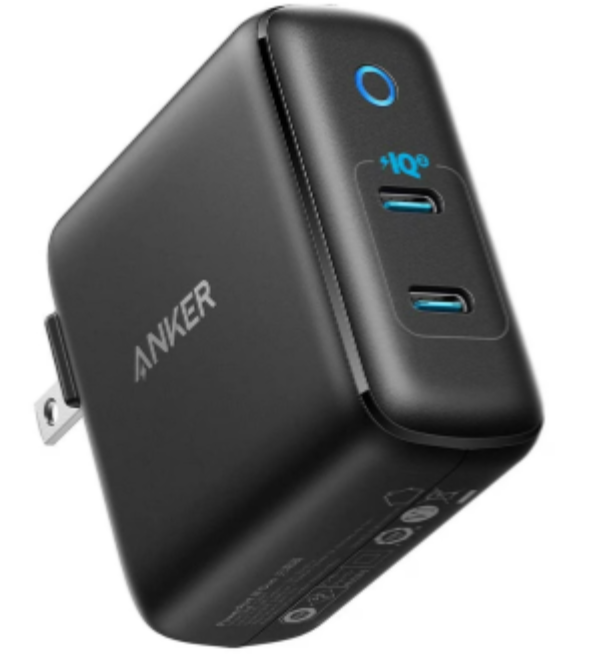

| ☐ 1 × USB-C Port Charger
|
Laser tracker case

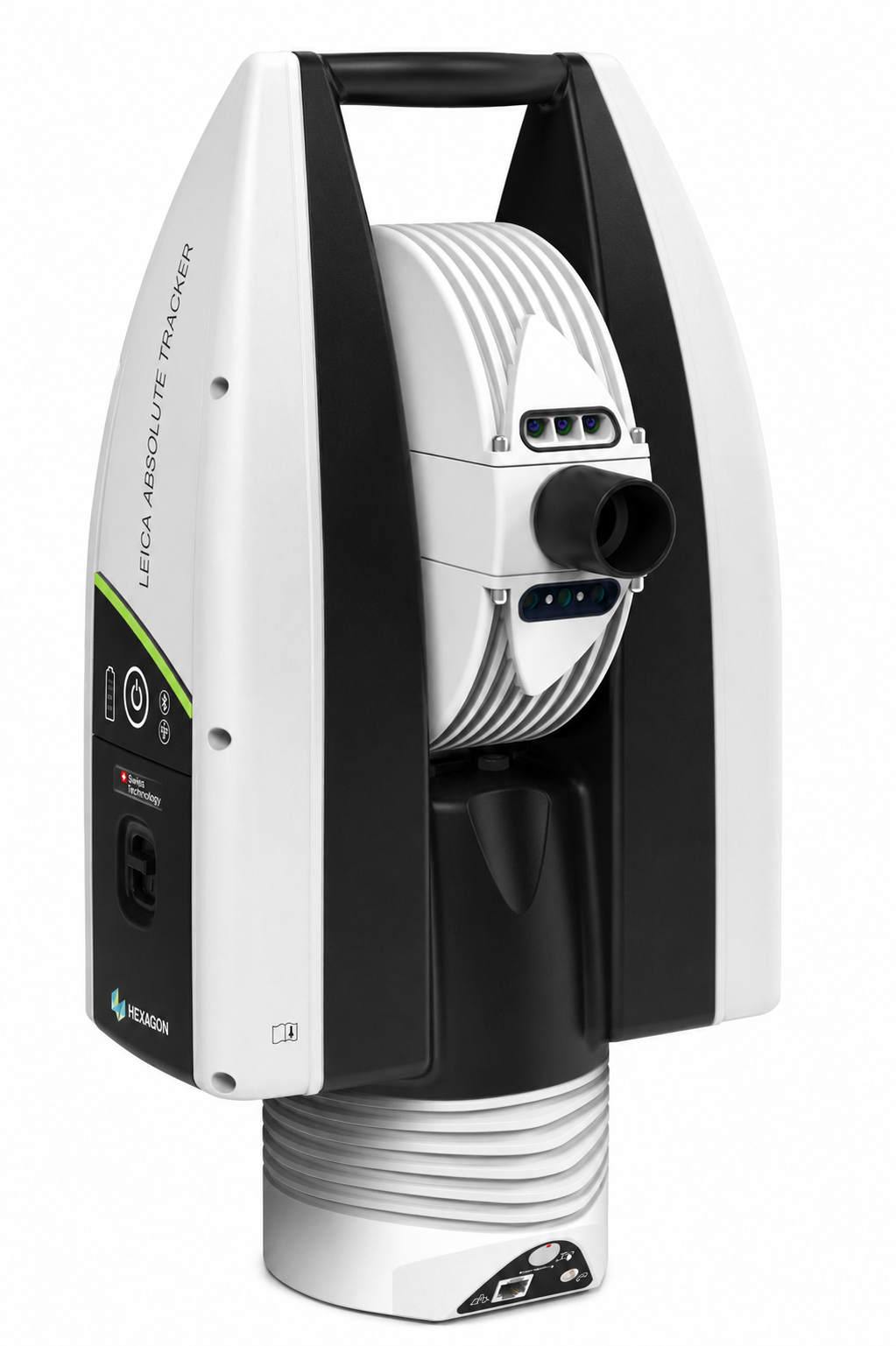

You receive one laser tracker — the Leica Absolute Tracker AT500, the AT930, or the AT930-NRT. Which model you get determines the radio and cabling in the case.
If your tracker is the AT500:

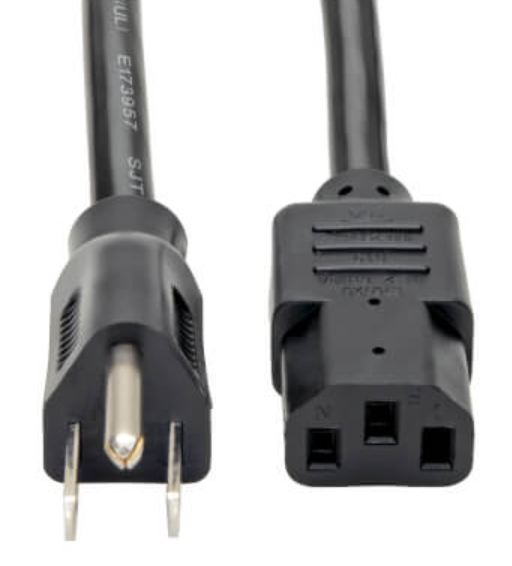

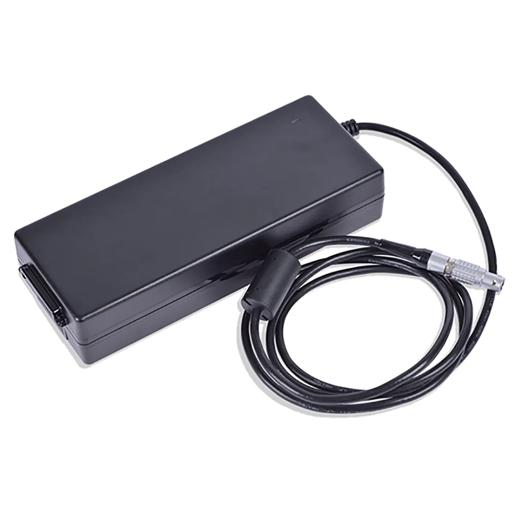

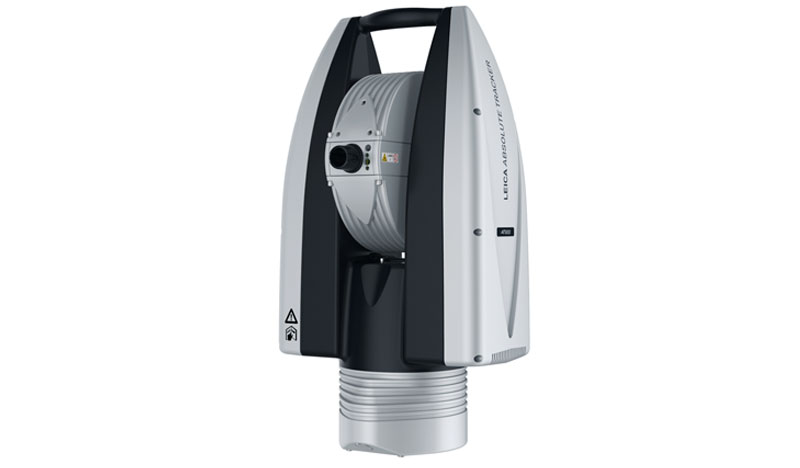

☐ Leica Absolute Tracker AT500 | ☐ AC Power Adapter | ☐ AC Power Extension |

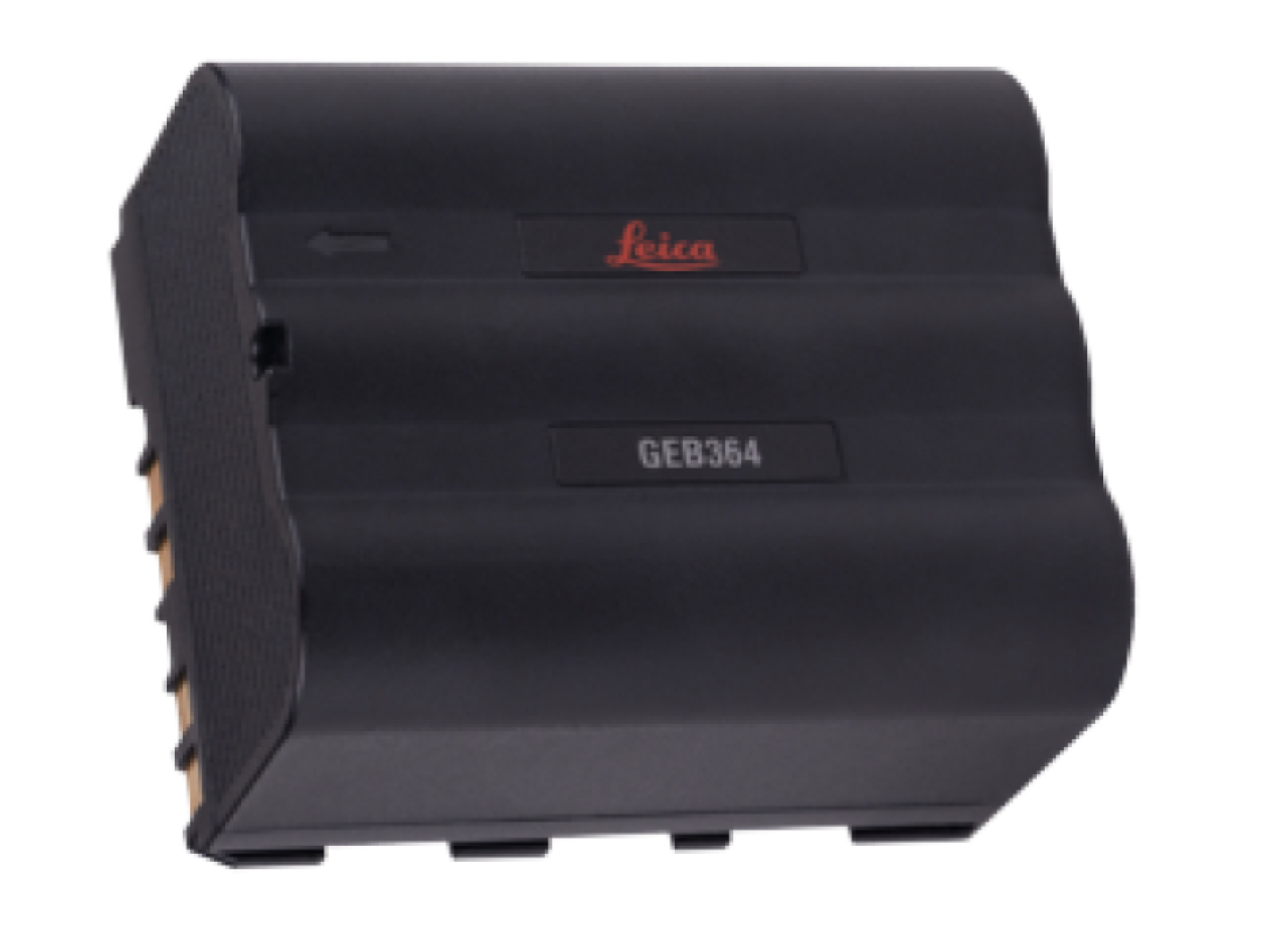

☐ 4 × Leica AT500 Batteries

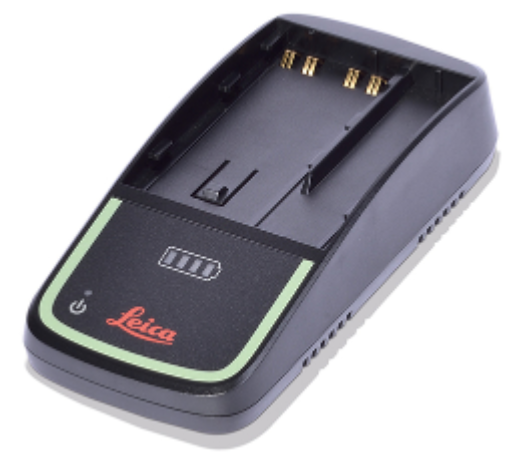

| ☐ 2 × Tracker Battery Charger

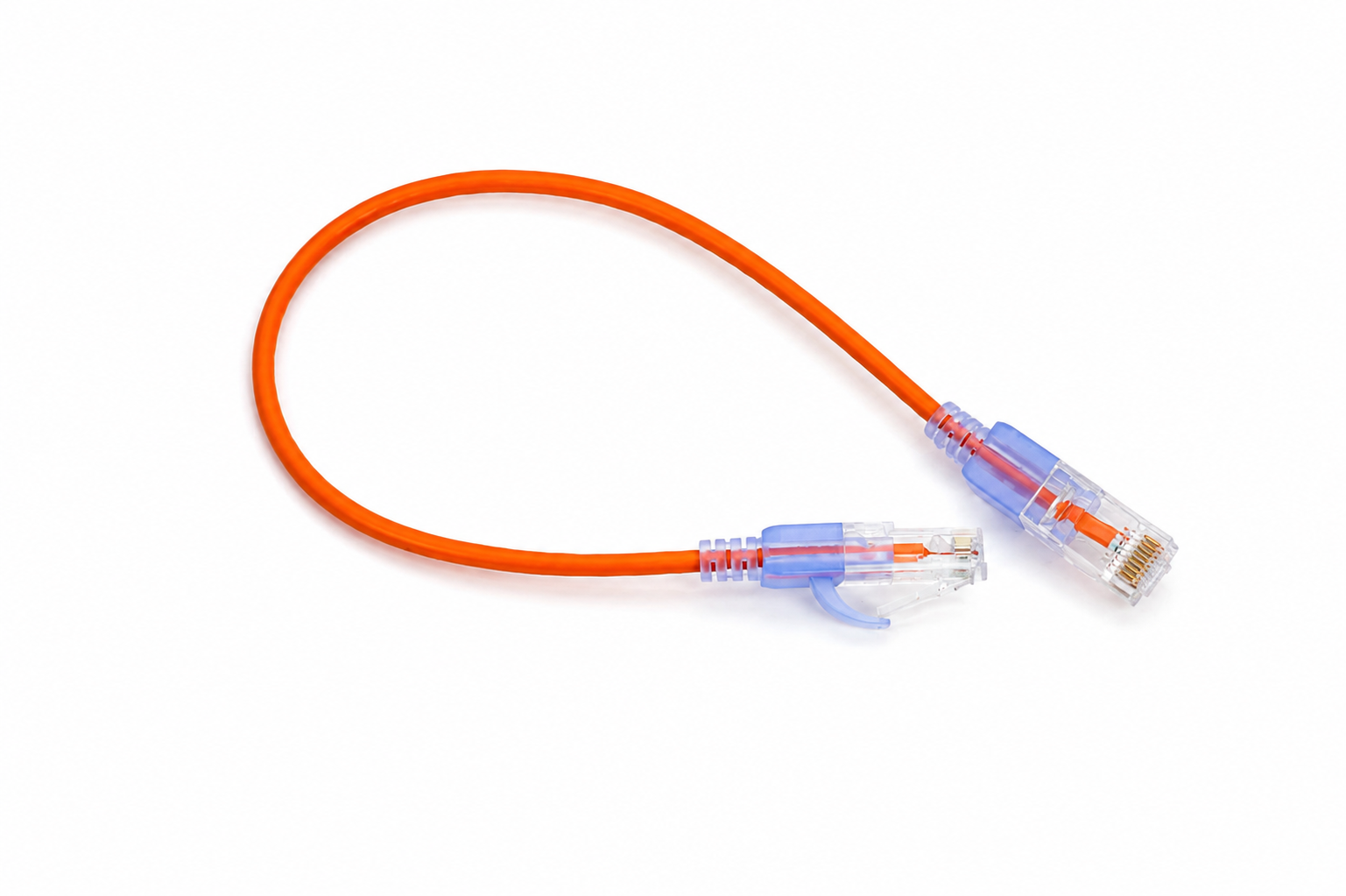

| ☐ 2 × Double Shielded Cat6 Ethernet Cable
|

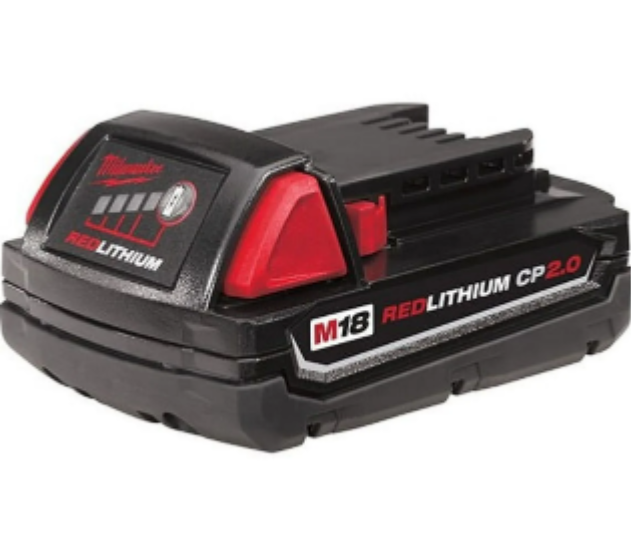

☐ 2 × 2Ah Milwaukee M18 Battery

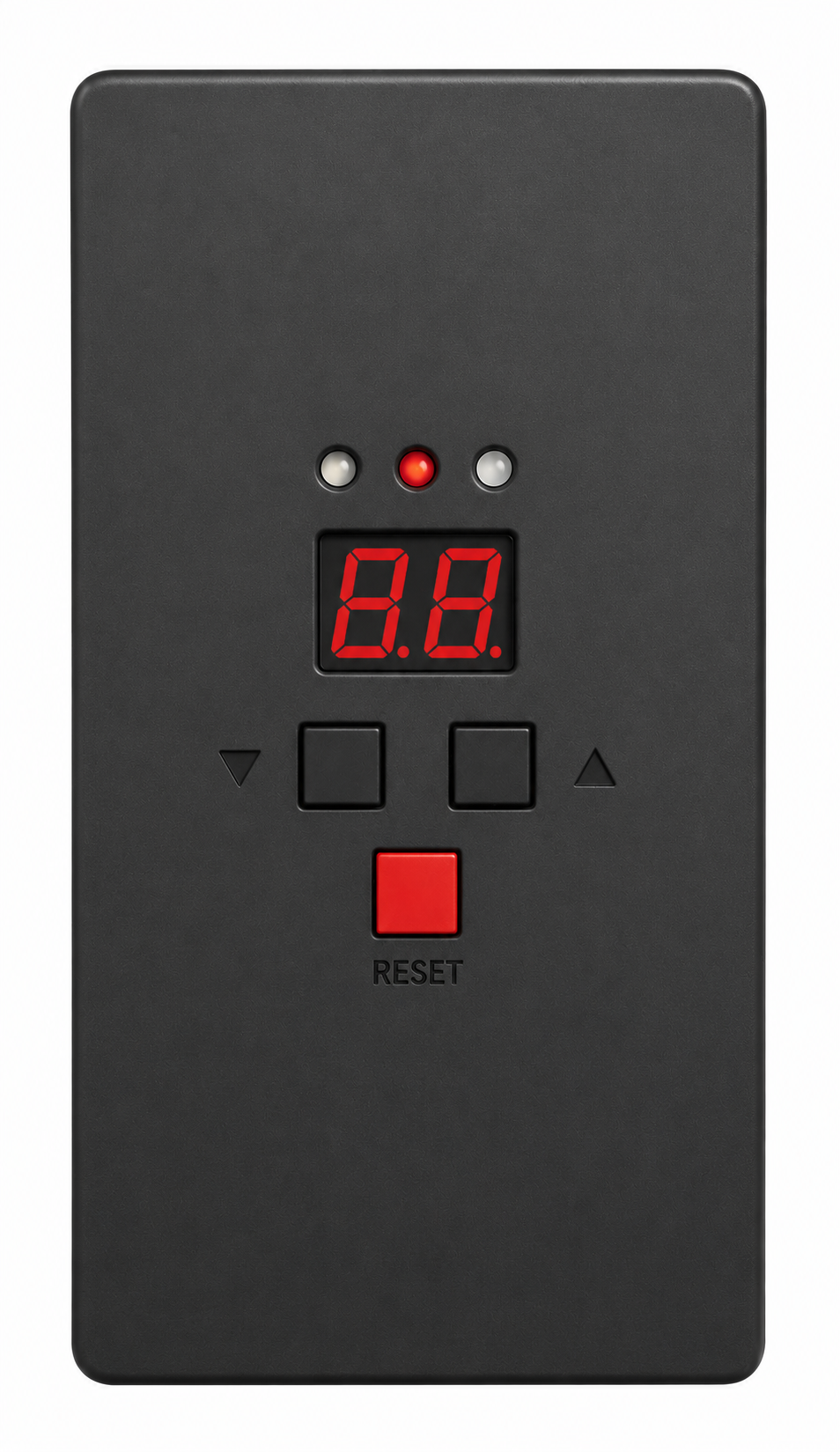

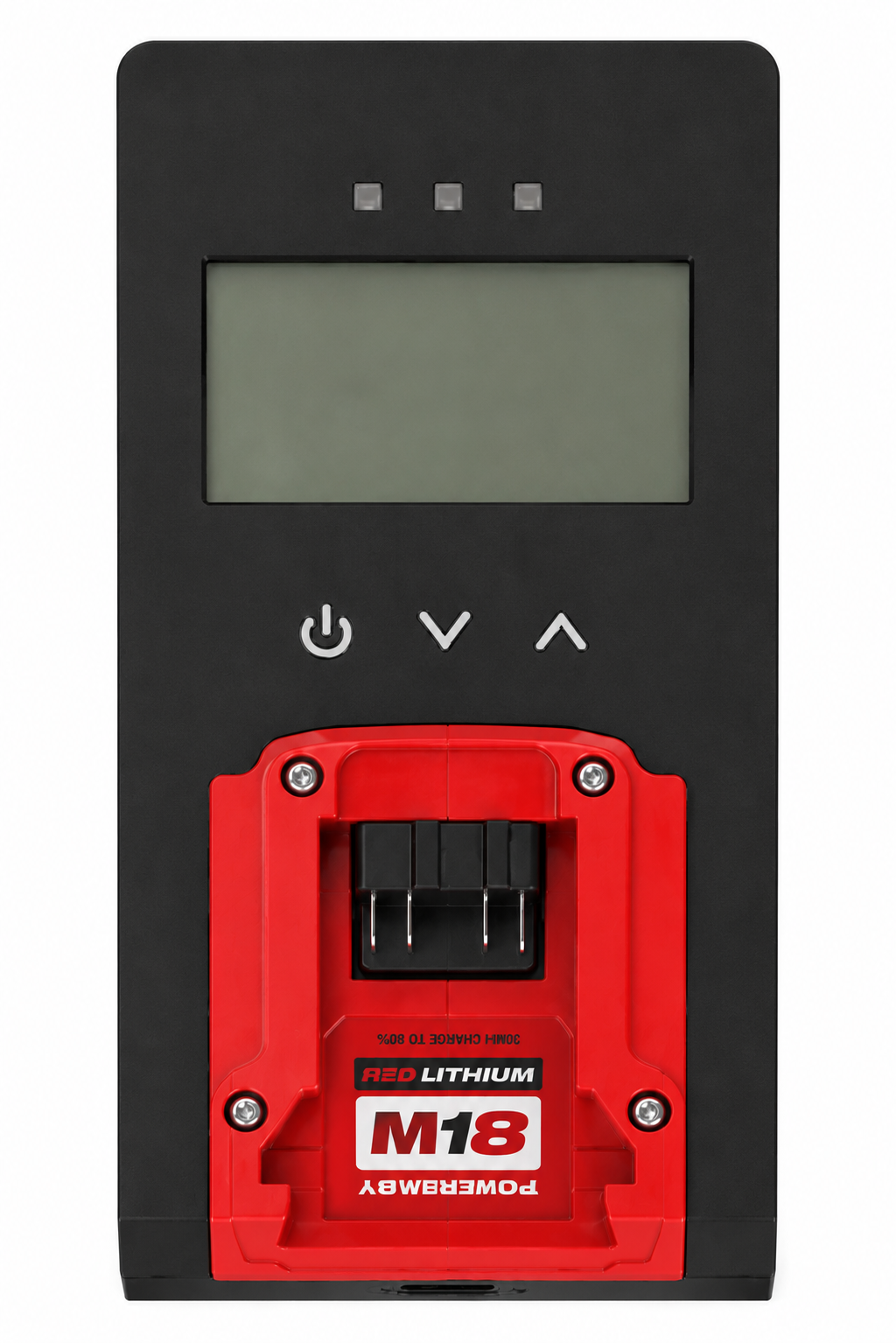

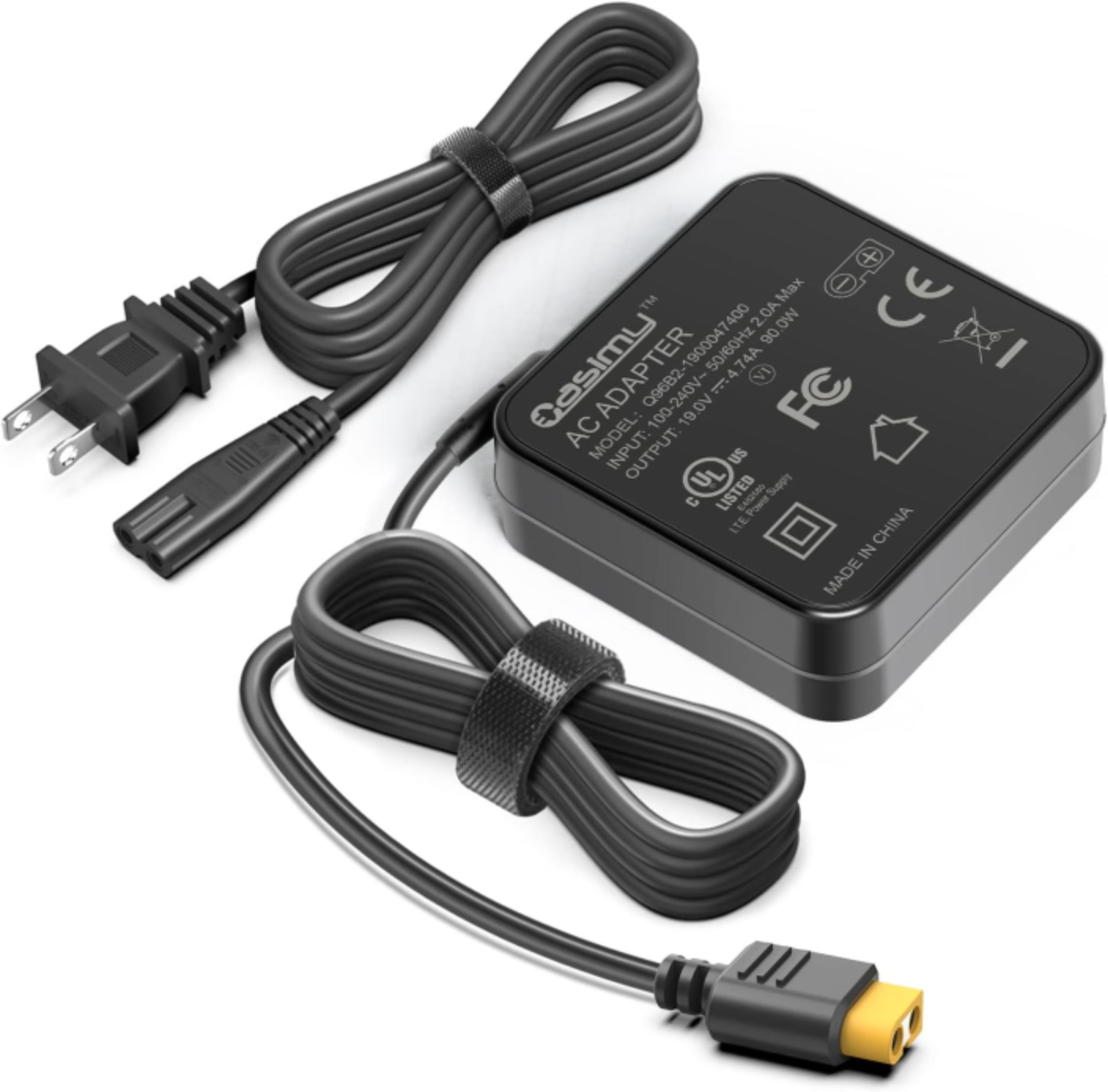

| ☐ Radio 2 | ☐ Radio Power Adapter
|
If your tracker is the AT930:
☐ Leica Absolute Tracker AT930 | ☐ AC Power Adapter | ☐ AC Power Extension |

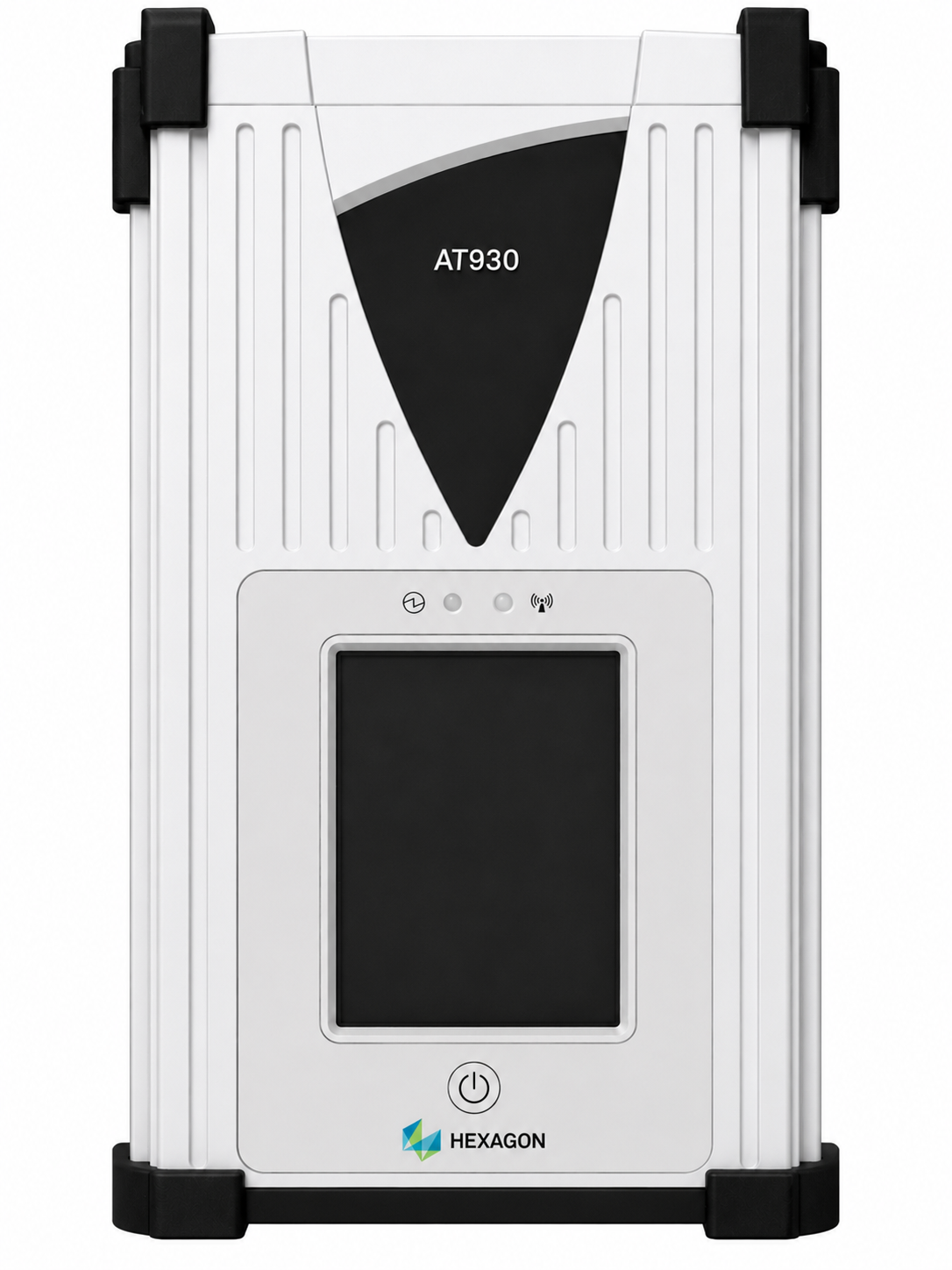

☐ Leica AT930 Controller

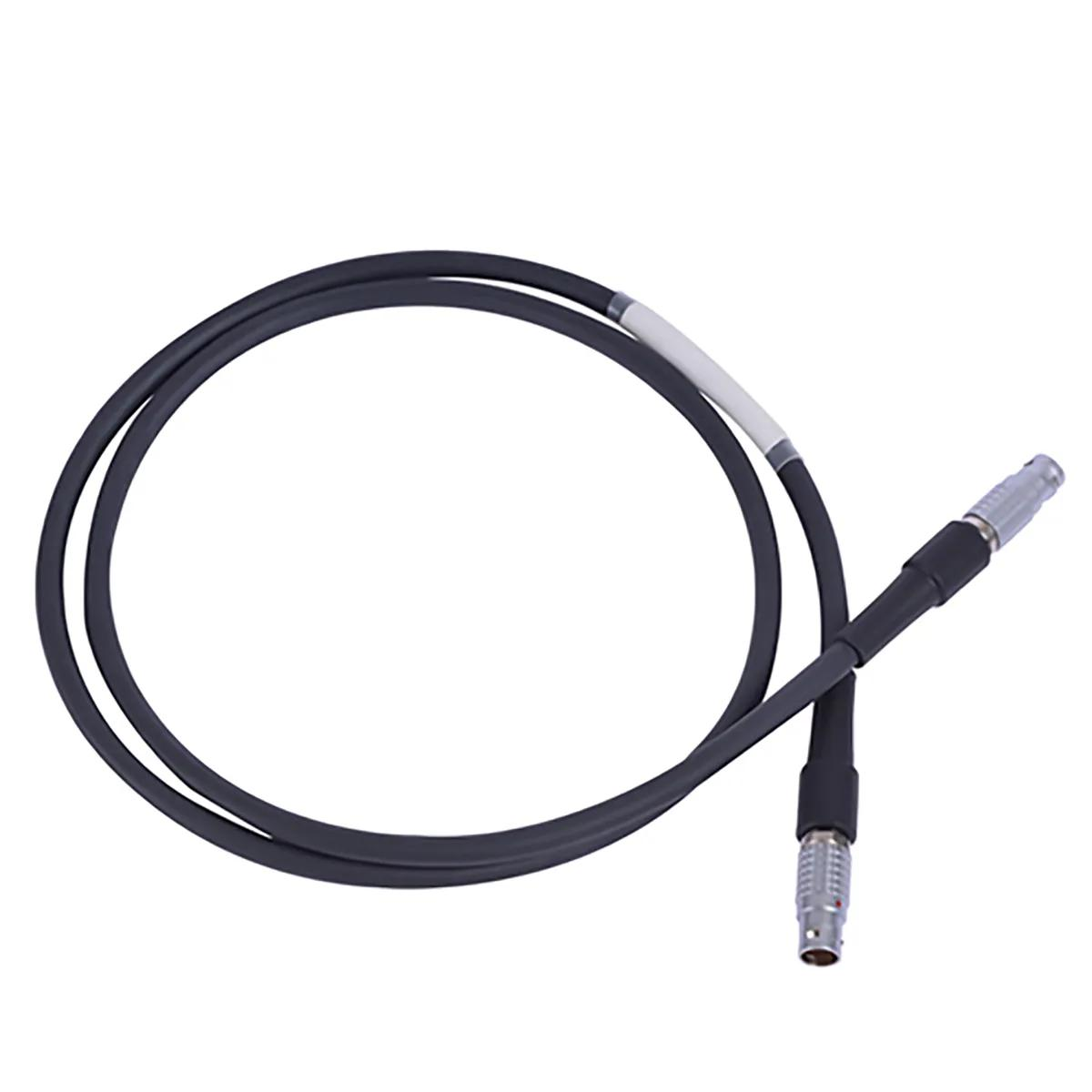

| ☐ Tracker-to-Controller Cable | ☐ 2 × Double Shielded Cat6 Ethernet Cable |

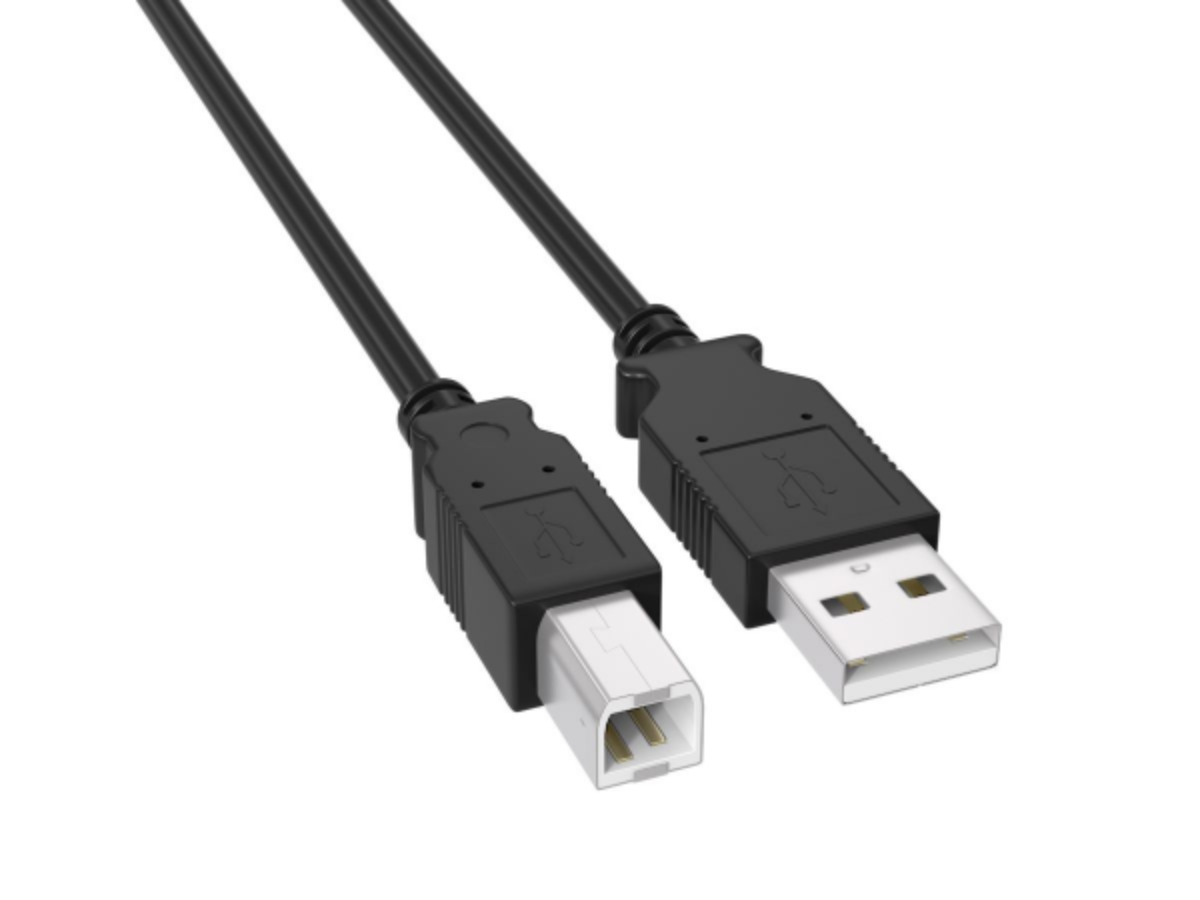

☐ 2 × Radio 1 Power Cable (USB Type A to Type B Cable)
| ☐ Radio 1 or Radio 2
Radio 1 Radio 2 | ☐ Radio Power Adapter (if needed for Radio 2) |
If your tracker is the AT930-NRT:
☐ Leica Absolute Tracker AT930 | ☐ AC Power Adapter | ☐ AC Power Extension |
☐ Leica AT930 Controller
| ☐ Tracker-to-Controller Cable | ☐ 2 × Double Shielded Cat6 Ethernet Cable |
☐ 2 × 2Ah Milwaukee M18 Battery | ☐ Radio 2 | ☐ Radio Power Adapter |
The AT930-NRT is configured like the AT930 but uses Radio 2, which is powered by the Milwaukee M18 batteries — so there is no separate radio power cable.
Tripod bag

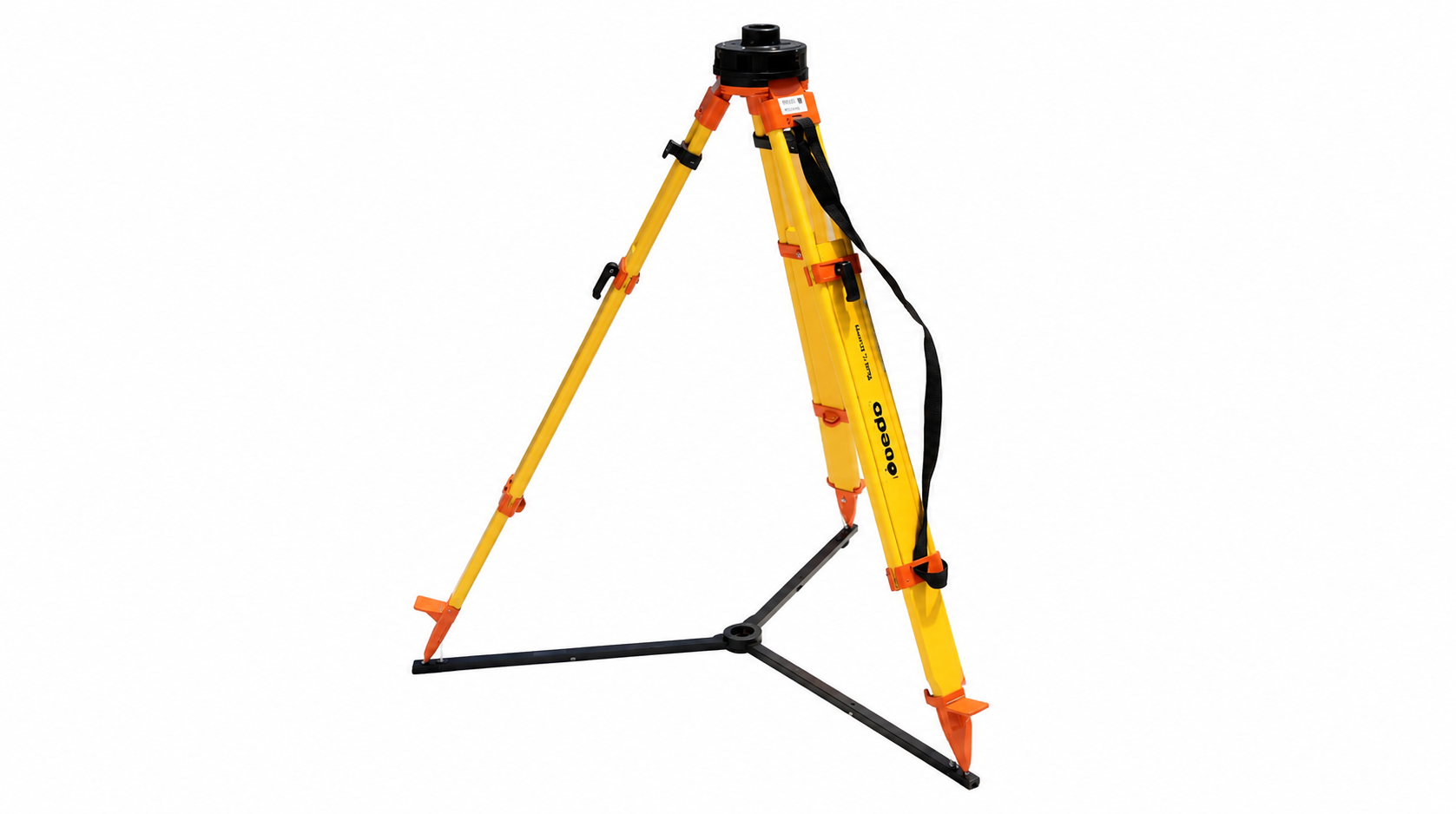

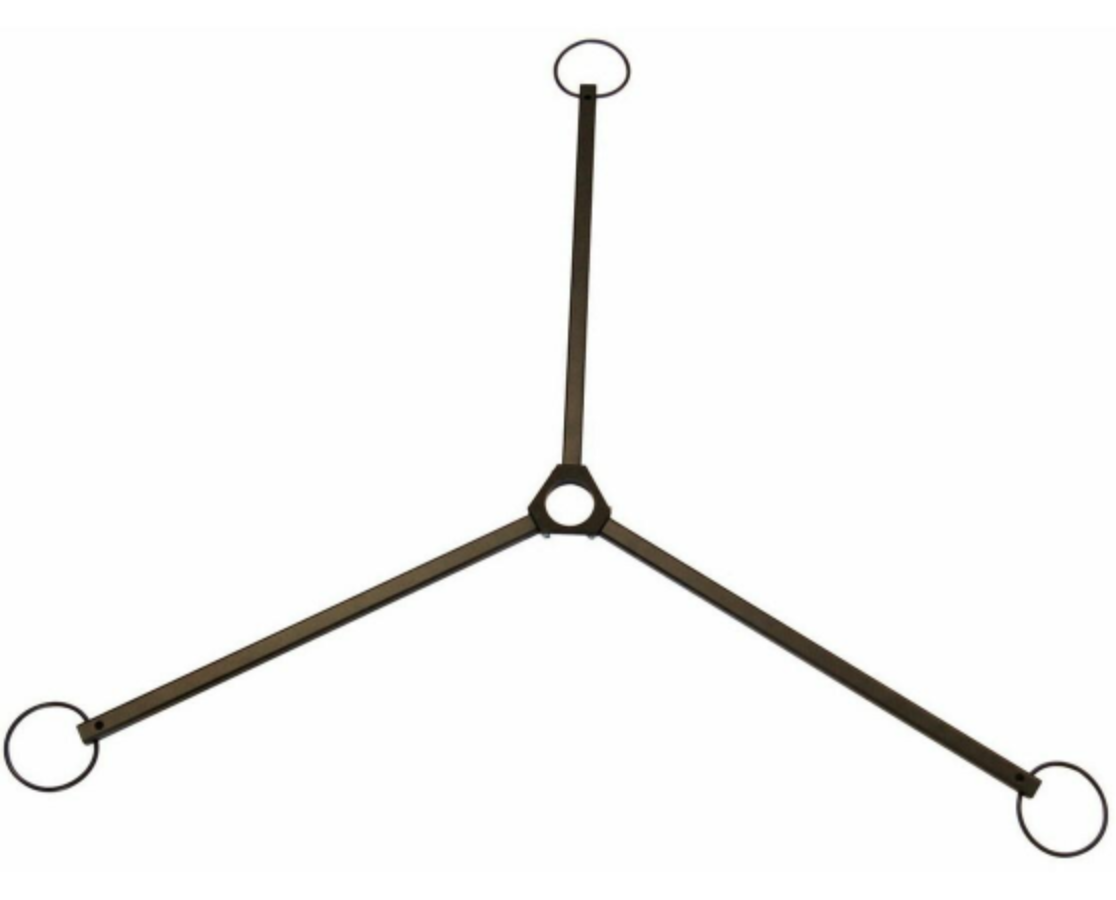

☐ Tripod | ☐ Tripod Base
|

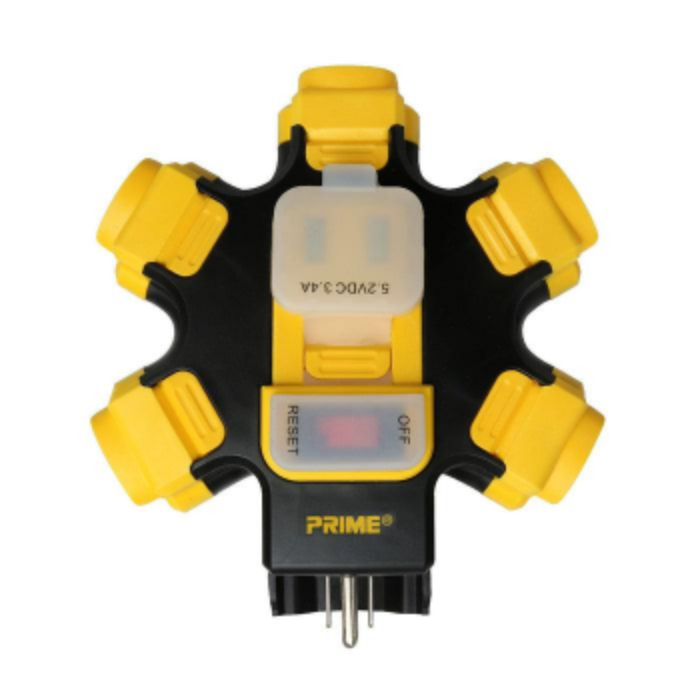

☐ Power Hub Adapter

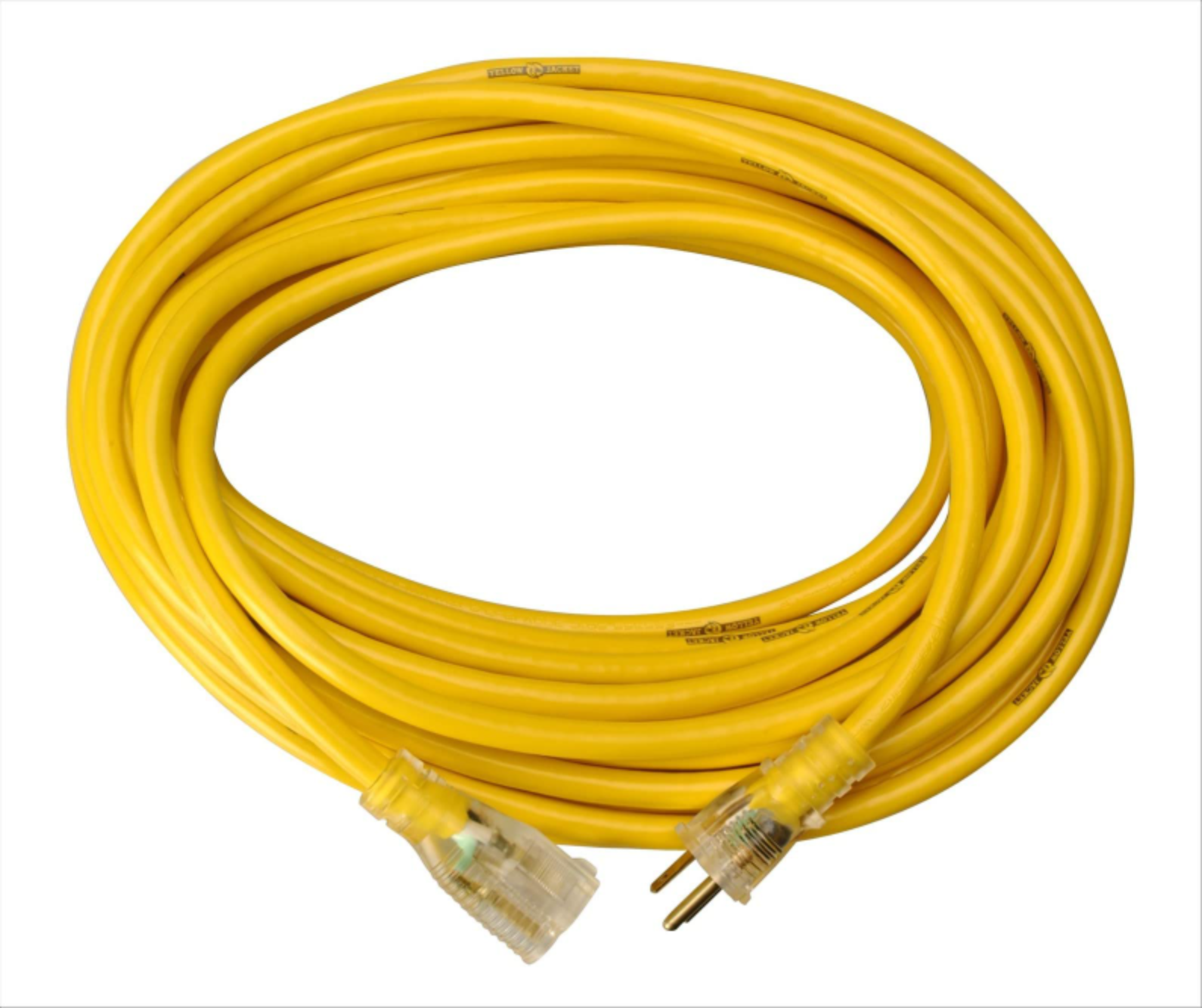

| ☐ 25' Power Extension Cord
|

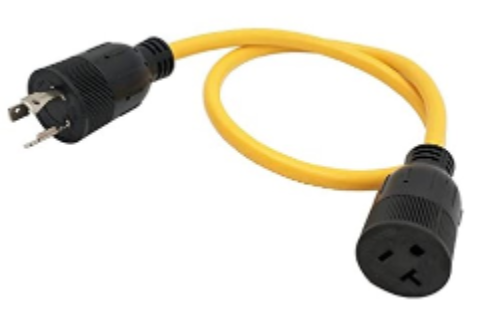

☐ Generator Adapter
| ☐ 120V Power Source (if applicable) |

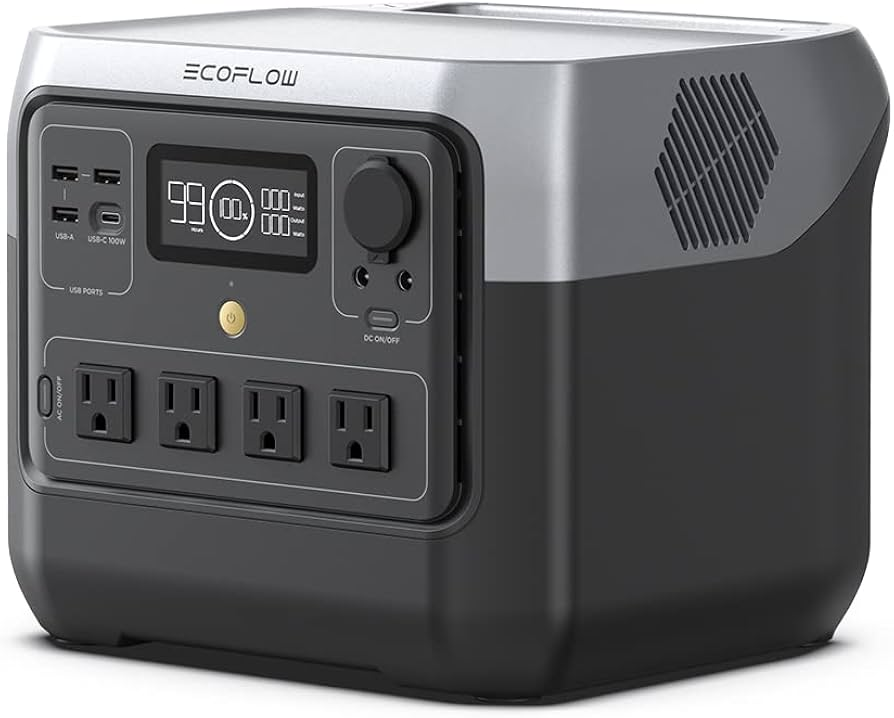

Some kits also include an EcoFlow portable battery if one was purchased through Dusty. If your project included an EcoFlow, it will be listed on your order.
