Overview

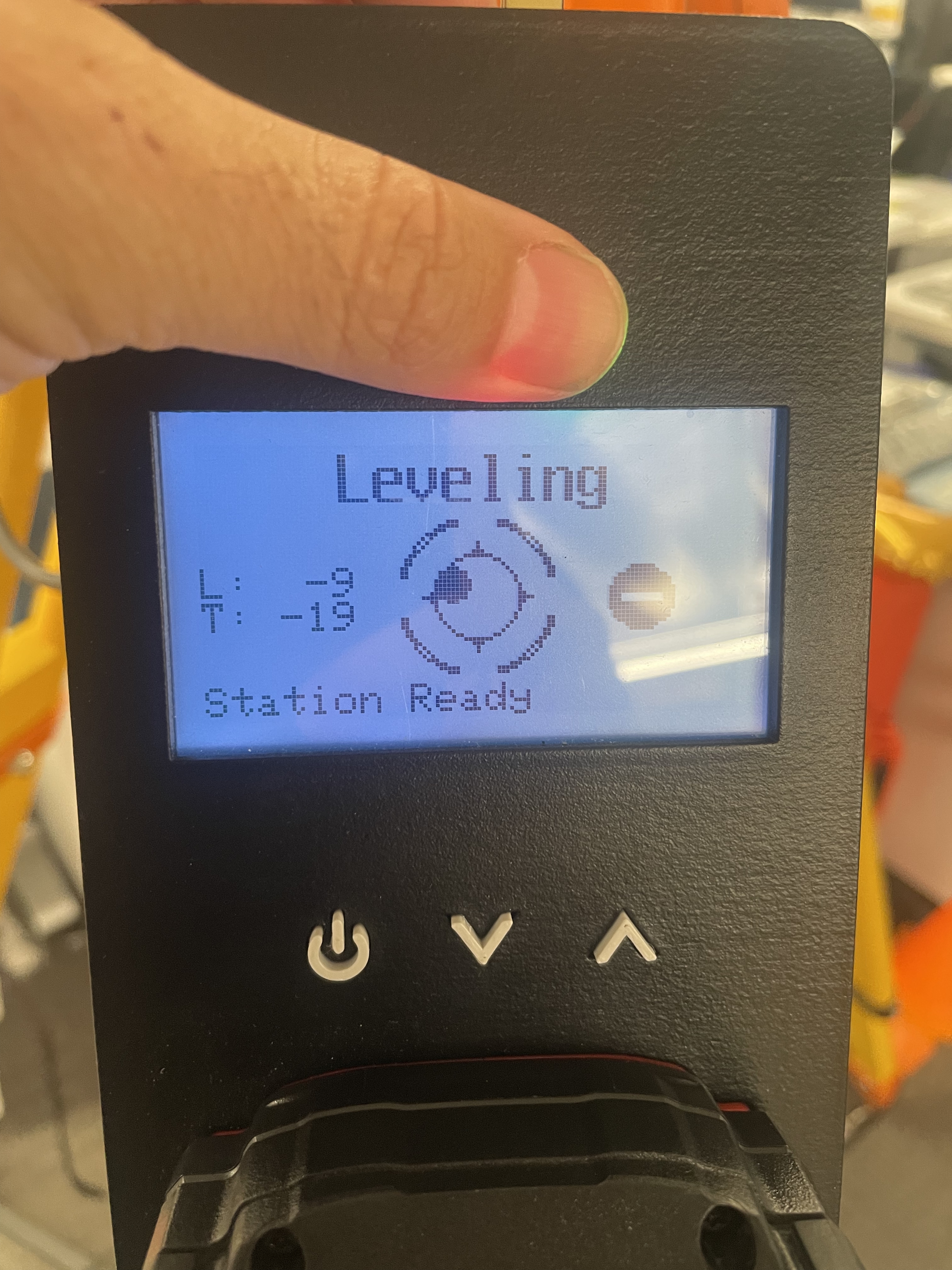

If you see the error "Failed to scan control point. Make sure the tracker laser is pointing at the reflector, the tracker radio is not in leveling mode, and try again." the radio's display is currently showing the Leveling screen. The radio must be switched to the Radio screen before it can communicate with the robot and scan a control point.

Solution

On the radio, use the navigation buttons to switch from the Leveling screen to the Radio screen.

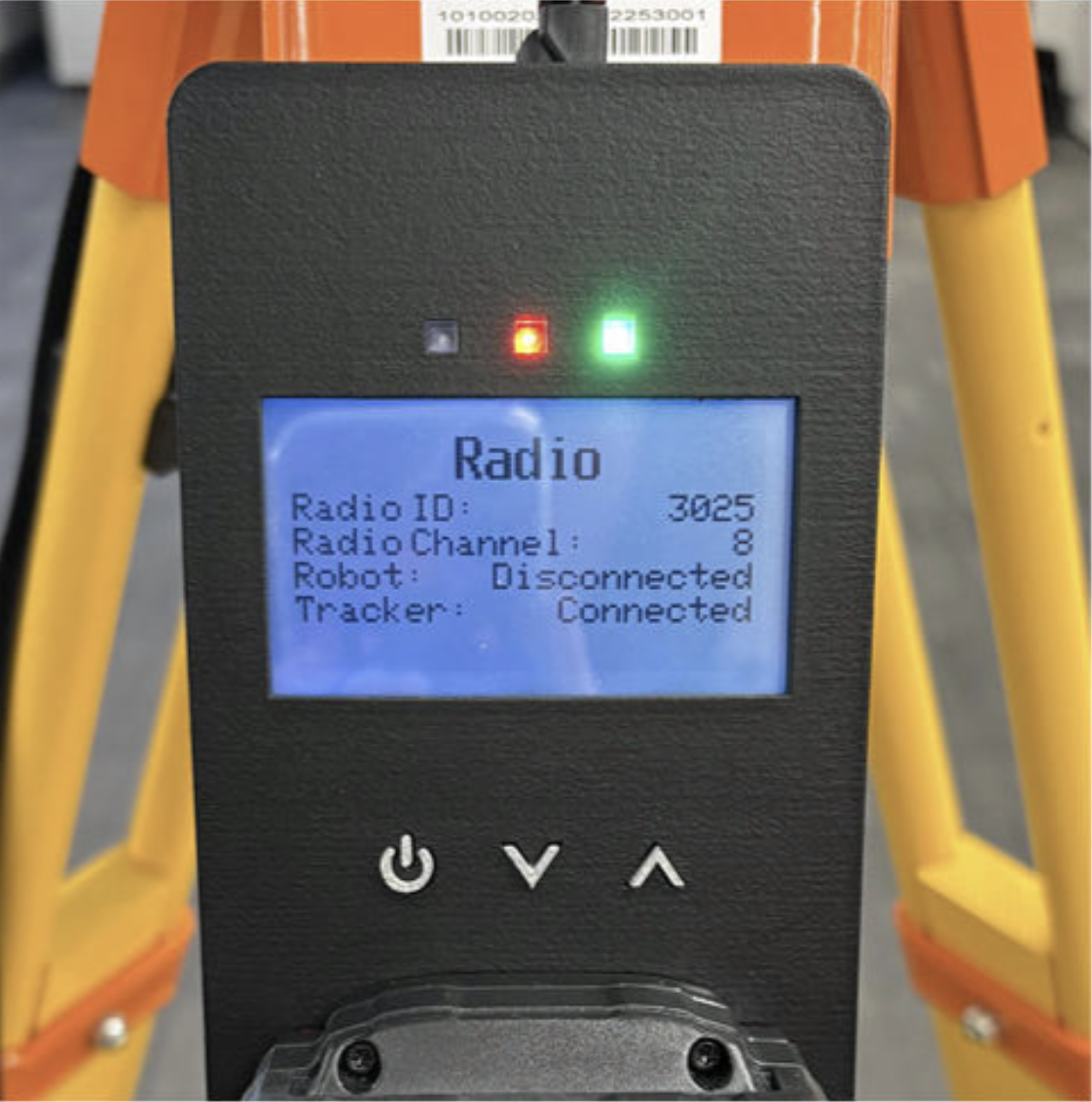

The Radio screen displays:

• Radio ID
• Radio Channel
• Robot: Connected / Disconnected
• Tracker: Connected / Disconnected
