Overview
The AT930 Controller has a touch-sensitive VGA color display that shows essential information about your Absolute Tracker system. This article describes the available display pages, how display brightness works, and what to expect from each splash screen.
Display Brightness
The AT930 Controller boots with pre-configured brightness settings.
If you don't interact with the display for 5 minutes, it automatically:
- Dims to 5% brightness
- Returns to the Main page
To restore full brightness, touch the display anywhere.
Splash Screens
Splash screens appear automatically during specific system events. You do not need to take any action during these screens unless noted below.

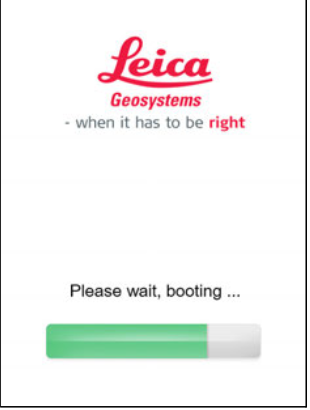

Startup
When you power on the AT930 Controller, the Startup splash screen is displayed with a "Booting" progress bar. Once booting completes, the display switches automatically to the Main page.

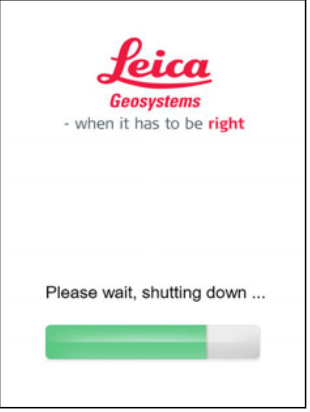

Shutdown
When you power off the AT930 Controller, the Shutdown splash screen is displayed with a "Shutting down" progress bar. The controller closes all system tasks before shutting down completely.

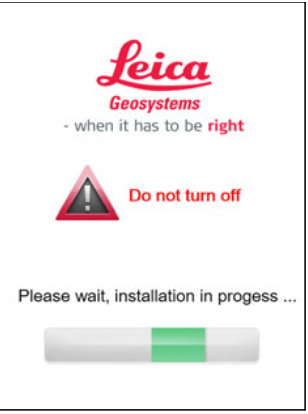

System Update
When installing a system update, the System Update splash screen is displayed with an "Installation in Progress" progress bar and a warning icon.
Display Pages

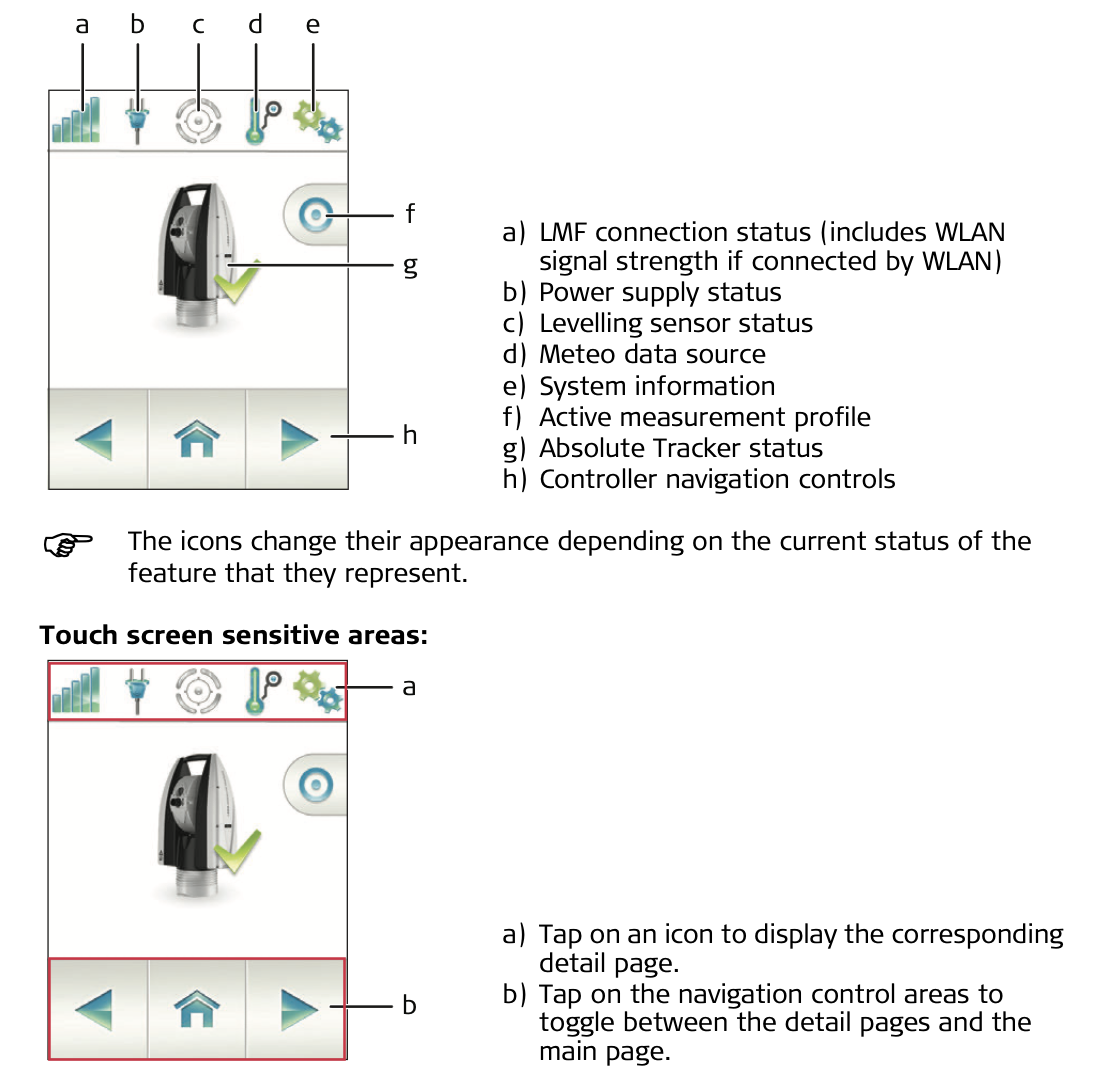

Main Page
The Main page is the default view and displays the core status of your Absolute Tracker system. The display always returns to this page after the brightness timeout.

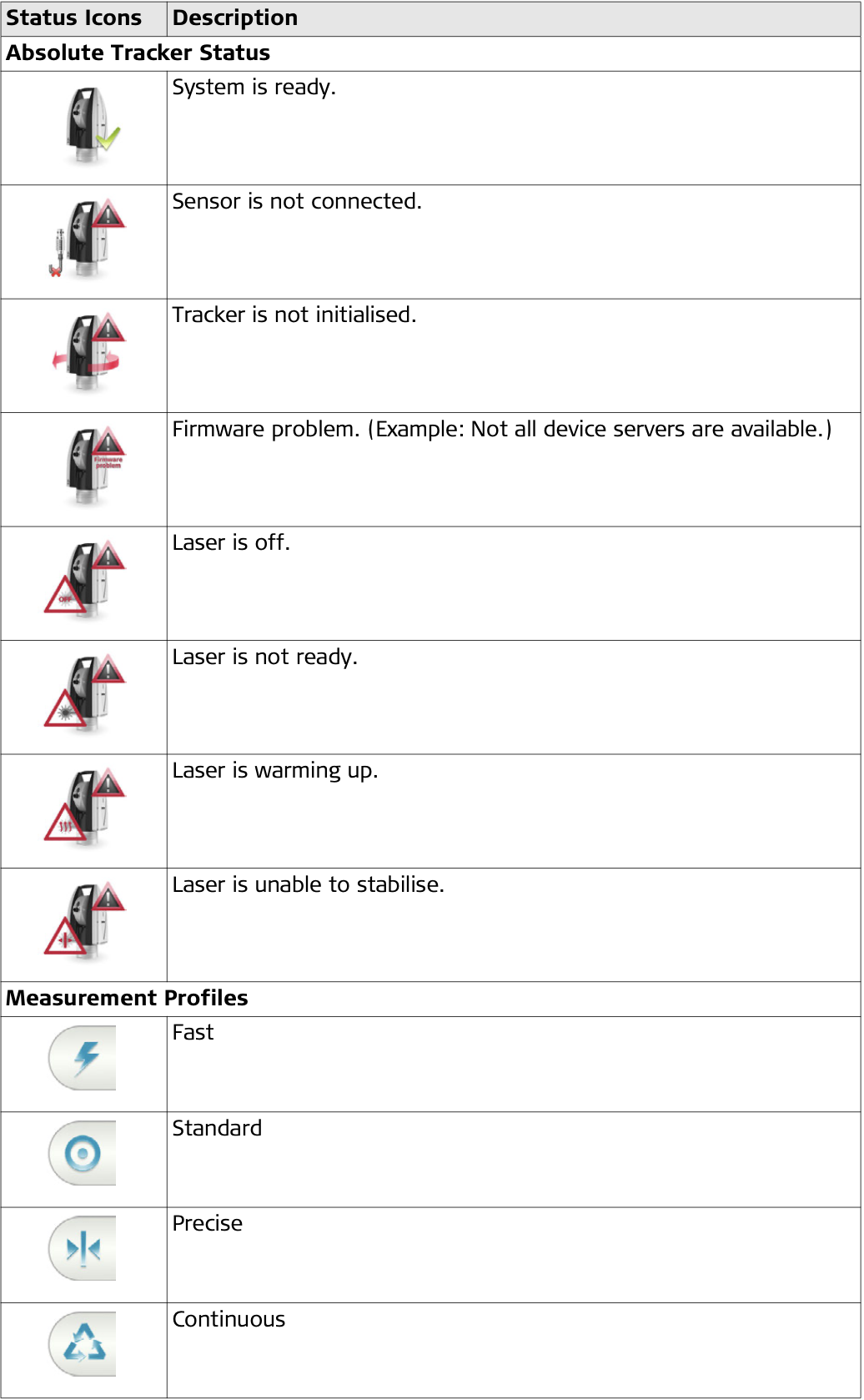

Tracker Status
Shows the current operational status of the tracker.

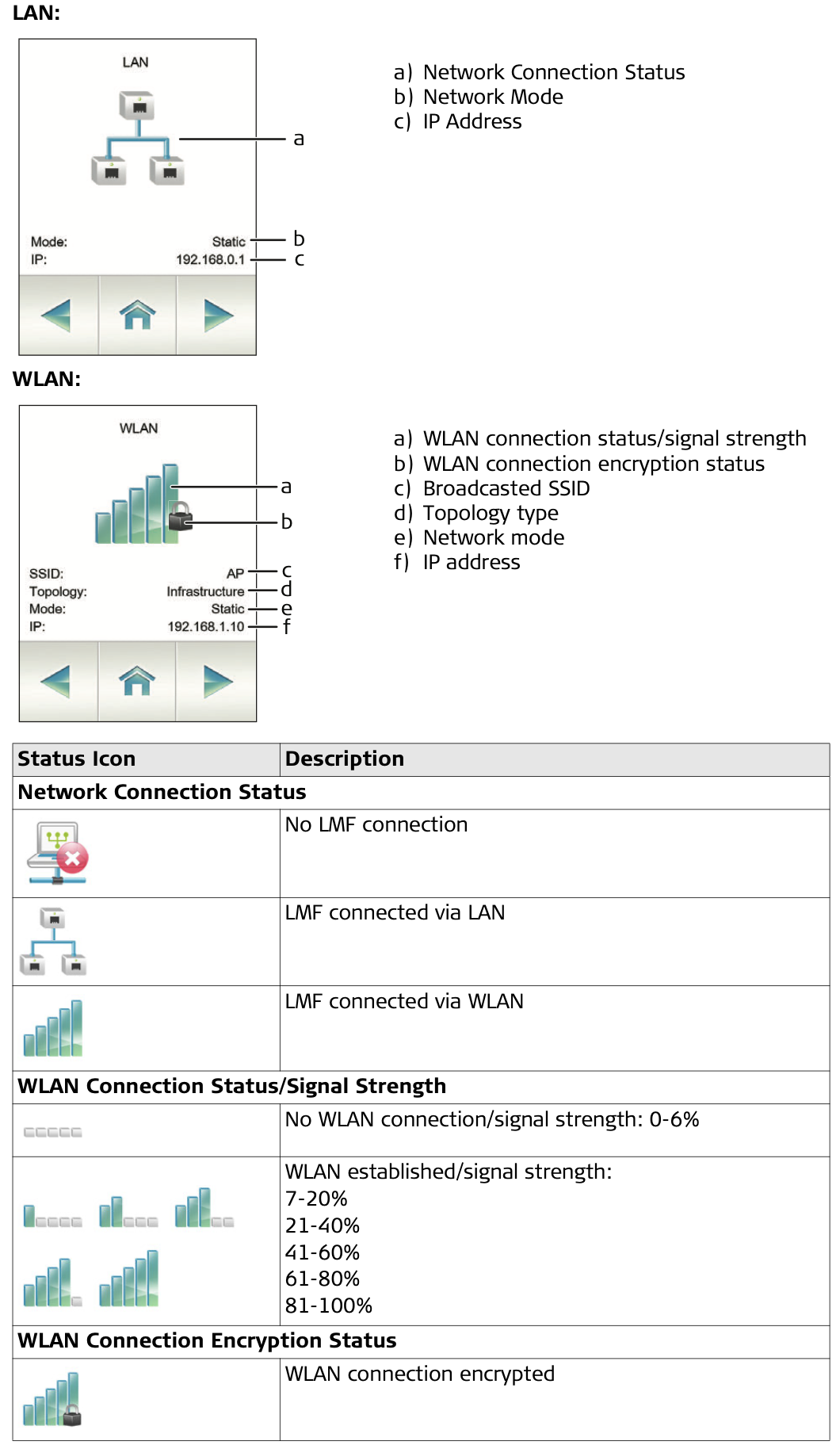

Network Connection
Displays the current network connection details for the AT930 Controller.

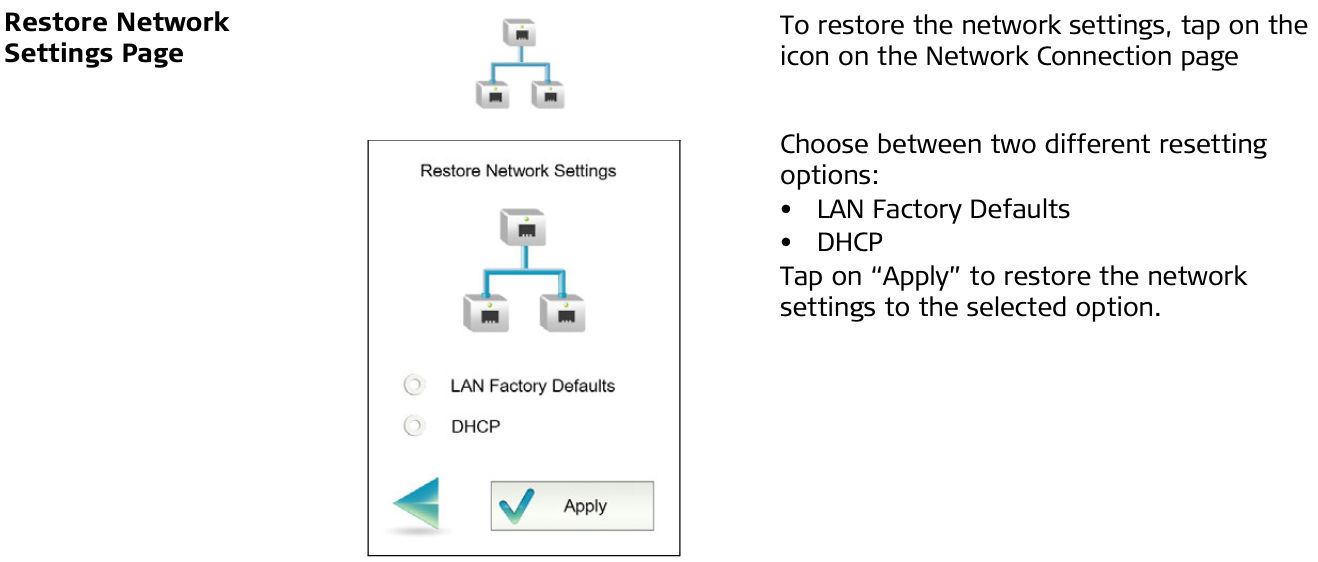

Restore Network Settings
Allows you to restore the controller's network configuration to its default settings.

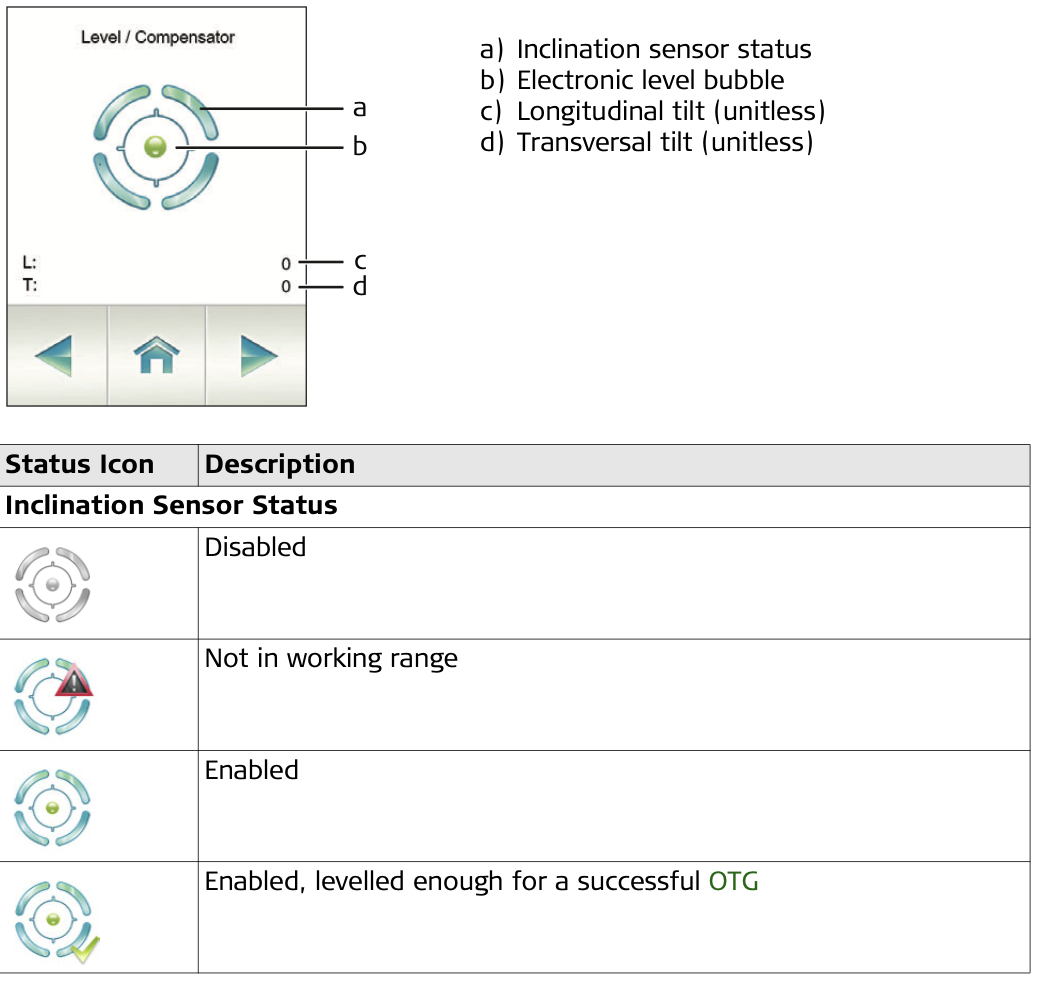

Levelling Page
Displays leveling information to help ensure the tracker is correctly positioned.
