Overview
The AT930 Controller is the primary interface for the Absolute Tracker system. It features a touch-sensitive VGA color display that shows essential system information across multiple pages.

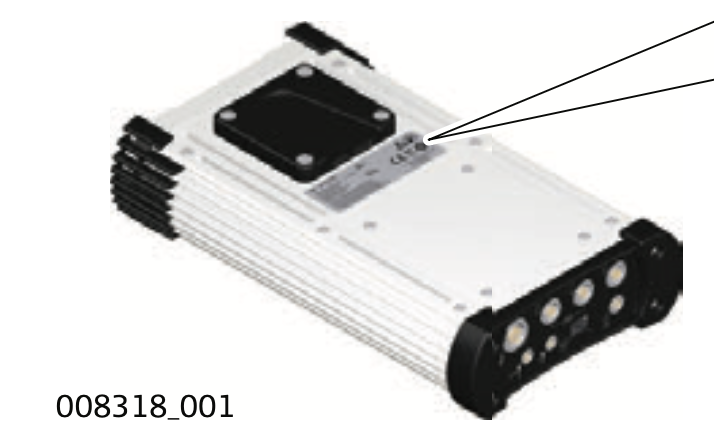

There are two variants of the AT930 Controller:

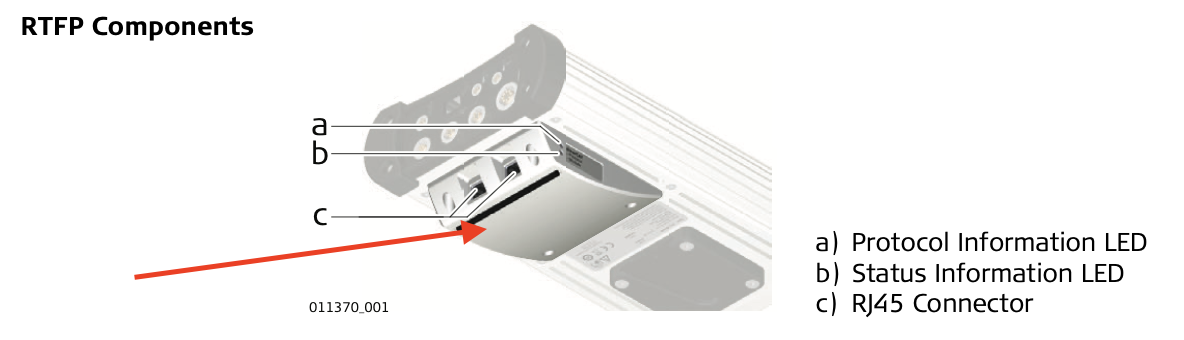

RTFP (Real-Time Feature Pack) The optional Real-Time Feature Pack for Absolute Tracker AT930/AT960 is designed to provide cyclic measurement data in real-time over an industrial field bus protocol, for example EtherCAT, with minimum jitter and small latency. The RTFP acts as a slave in the external automation bus system.
NRTFP (Non-Real-Time Feature Pack) The standard controller variant for applications that do not require real-time field bus communication.
Display Pages
For a detailed description of each display page, please refer to AT930 Controller Display Pages.
Controller Components

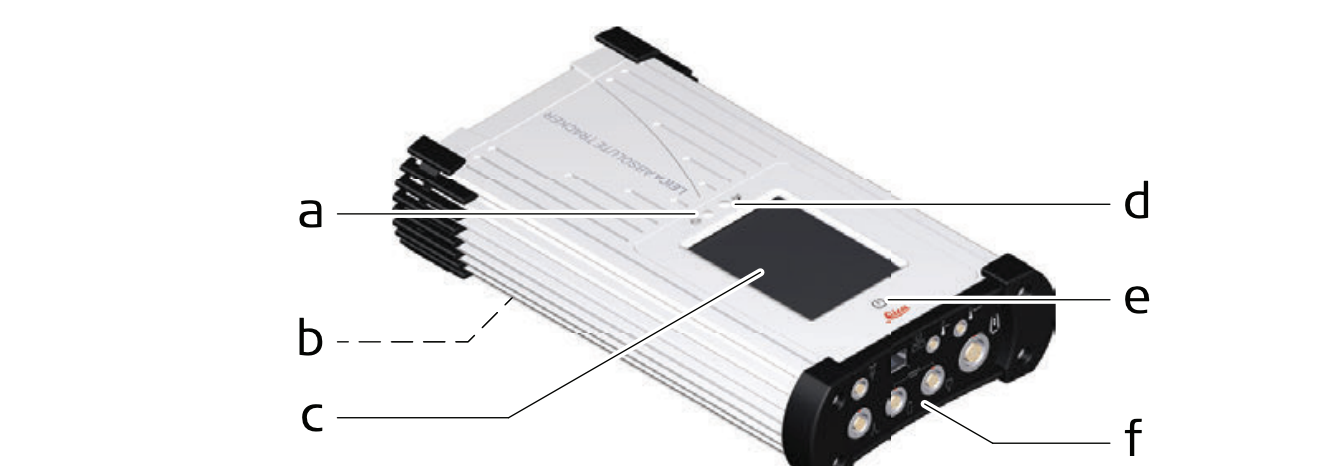

Top View
| Label | Component |
|---|---|
| a | Power status LED |
| b | Clip for Universal Stand Fixture (back side) |
| c | Touch-sensitive status display |
| d | WLAN status LED |
| e | Main power switch |
| f | Connectors |

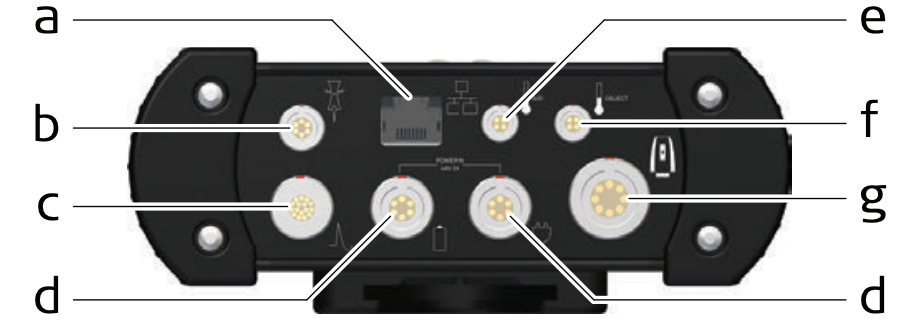

Front View
| Label | Connector |
|---|---|
| a | Ethernet (LAN) RJ45 — TCP/IP |
| b | Probe Cable |
| c | Trigger cable |
| d | Socket for AC power supply unit and/or battery unit |
| e | Connector for external ambient temperature sensor |
| f | Connector for object temperature sensor |
| g | Connector for sensor cable |
Turning the Controller On
Press the power switch on the front panel to turn on the AT930/AT960 instrument.
Turning the Controller Off
Press and hold the power switch for 2 seconds to shut down the system. This ensures the system software shuts down properly.
